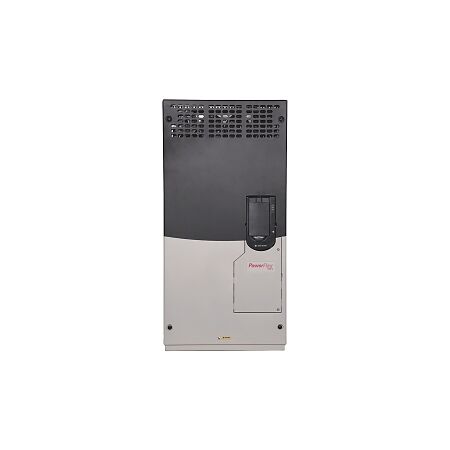

Allen-Bradley PowerFlex 753 VSD 400V IP54 302A 160kW ND or 260A 132kW HD No Brake Frame 7

PowerFlex 753 VSD 400V | 160kW ND | IP54 Rated | Frame 7 by NHP

BRAND: NHP

SKU: 20F1AGC302JN0NNNNN

$48,339.50 List price: $64,188.50

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Variable speed drive with 400V input and 160kW normal duty power—ideal for industrial manufacturing and automation. Built for energy efficiency, with IP54 protection against dust and water.

Description
Attachments

Product Name/Title: Allen-Bradley PowerFlex 753 VSD 400V IP54 302A 160kW ND or 260A 132kW HD No Brake Frame 7

Brand: NHP

SKU: 20F1AGC302JN0NNNNN

Alternatively Known As: PowerFlex 753 Variable Speed Drive, PF753 VSD

Technical Specifications

Number of phases input: 3
Nominal input voltage: 400 V
Nominal output power AC: 160 kW
Nominal output current: 302 A
KW rating normal duty: 160 kW
KW rating heavy duty: 132 kW
Dynamic braking transistor: No
Control characteristic: PID
EMC version: Yes
Integrated motion function: No
Suitable for safety functions: Yes
Contains keypad: No
Frame size: 7
Degree of protection IP: IP54
Degree of protection NEMA: 12
Operating temperature: -20-60 °C
Storage temperature: -40-70 °C
Dimensions (H x L x W): 1614mm x 465mm x 610mm
Weight: 132 kg

Key Features

Variable speed drive with PID control characteristic.
IP54 rated for protection against dust and water.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial: Manufacturing, processing plants, and automation systems

Standards & Compliance

Complies with relevant Australian standards for electrical equipment.

Environmental Benefits

Energy-efficient operation reduces overall power consumption.

Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Allen-Bradley PowerFlex 753 VSD is available now for immediate purchase. Ideal for industrial applications requiring precise speed control.

Non-Returnable & Non-Cancellable

20F1AGC302JN0NNNNN-AU-PF753-Variable-Speed-Drive-Datasheet.pdf (20F1AGC302JN0NNNNN-AU-PF753-Variable-Speed-Drive-Datasheet.pdf, 1,331 Kb) [Download]
