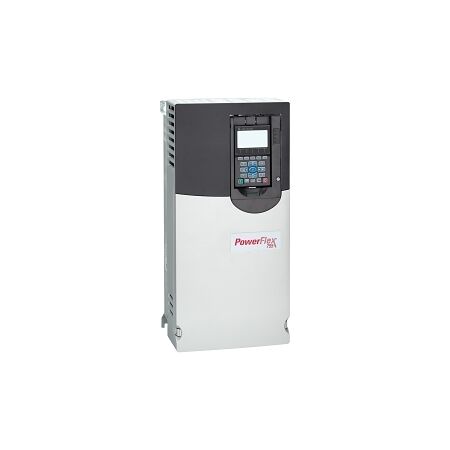

PowerFlex 755 VSD 400V | 205A 110kW | IP54 Rated | Frame 6 by NHP
Variable speed drive with 400V input and 205A output—ideal for industrial and commercial applications. Built for energy efficiency, with IP54 protection and PID control for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley PowerFlex 755 VSD 400V IP54 ND 205A 110kW or HD 170A 90kW Frame 6
Brand: NHP
SKU: 20G1AGC205JA0NNNNN
Alternatively Known As: PowerFlex 755 Variable Speed Drive, PF755 VSD, Allen-Bradley VSD
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 400 V
- Nominal output power AC: 110 kW
- Nominal output current: 205 A
- Dynamic braking transistor: Yes
- EMC version: Yes
- Suitable for safety functions: Yes
- Degree of protection: IP54
- Operating temperature: -20 to 60 °C
- Storage temperature: -40 to 70 °C
- Dimensions (H x L x W): 1298mm x 465mm x 609mm
- Weight: 100 kg
Key Features
- Variable speed drive with PID control characteristic.
- IP54 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance and safety.
Applications
- Industrial: Manufacturing, processing plants, and automation systems
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Energy-efficient operation reduces overall energy consumption.
Warranty Information
Standard warranty terms apply, please check with the supplier.
Available Now
The Allen-Bradley PowerFlex 755 VSD is available now for immediate purchase, ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
