PP4-C128110000000 | Mounting systems

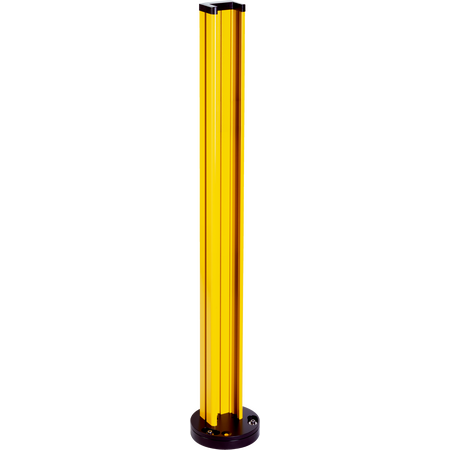

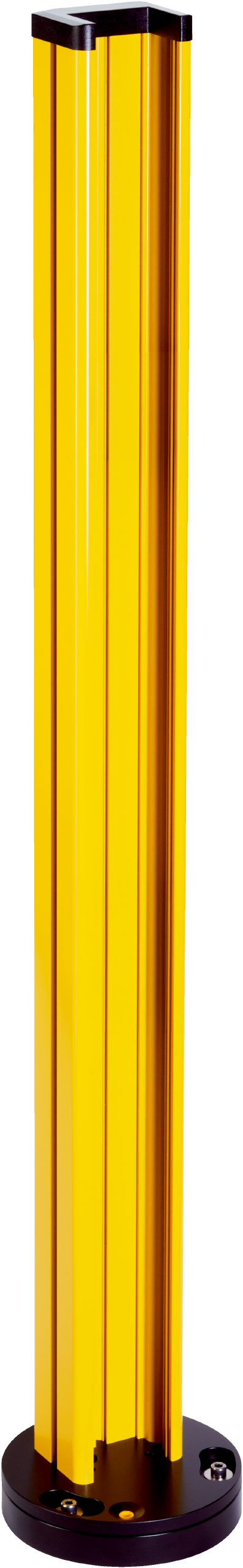

The SICK PP4 Protective Column is a robust mounting system designed to protect deTec and deTem safety devices from mechanical impacts, featuring precise alignment tools and compatibility with multiple mounting brackets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PP4-C128110000000 | Mounting systems
Brand: SICK
SKU: 2139649
Alternatively Known As: Protective device column, Safety light curtain mounting column, Safety sensor mounting post, Industrial safety column mount
Technical Specifications
- Column height: 1,284.5 mm
- Material: Aluminum (powder-coated) for column profile, alignment plate, and base plate; PA6 for fine alignment wheel and alignment clamp; ABS for end cap
- Base plate diameter: 195 mm
- Cross-section of column profile: 101.6 mm x 81 mm
- Weight: 6.35 kg
- Storage temperature range: -30 °C to +70 °C
- Includes pre-assembled alignment plate, removable end cap, base plate with spirit level, fine alignment wheel, setscrews, M8 screws and washers, alignment clamp
- Supports device variants with protective field height ≤ 1,050 mm and safety light-beam sensor with 4 beams, lowest beam 300 mm from floor
- Dimensions (H x L x W): 1284.5mm x 81mm x 101.6mm
- Weight: 6.35 kg
Key Features
- Mechanical anchoring to the floor for stable installation
- Includes pre-assembled alignment plate and removable end cap
- Base plate with spirit level, fine alignment wheel, and setscrews for precise leveling
- Compatible with FlexFix, Flat-Mount, and Swivel-Mount brackets
- Supports additional accessories such as muting arms and muting sensor protection
- Alignment aid marks at -45°, 0°, and 45° for easy positioning
- Cable entry provided
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper mechanical anchoring and alignment for optimal device protection and safety compliance.
Applications
- Mounting suitable variants of the deTec safety light curtain and deTem safety light-beam sensor
- Protecting devices from mechanical influences from three sides
- Industrial safety and automation environments requiring device protection and precise alignment
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum construction with powder coating enhances product lifespan, reducing waste
- Enables secure mounting of safety devices, promoting safer industrial environments and reducing accident-related environmental impacts
Warranty Information
Warranty information not specified; please refer to SICK's standard product warranty terms.
Available Now
The SICK PP4 Protective Column Mounting System is available for immediate purchase, ideal for industrial safety applications requiring robust device protection and precise mounting.
