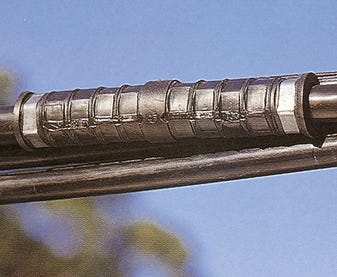

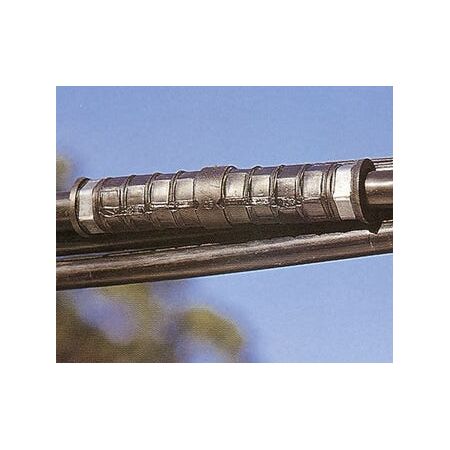

Pre-Insulated Compression Sleeve 95mm | Aluminium Tube | Thermoplastic Insulation | 1050A by Cabac
Cabac Pre-Insulated Compression Sleeve 95mm is designed for full tension joining of ABC cables, featuring an aluminium tube with internal contact grease and thermoplastic insulation for reliable electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pre-Ins Compression Slv 95mm
Brand: Cabac
SKU: MJPT95
Alternatively Known As: Pre-insulated ABC cable sleeve, Compression sleeve for aerial bundled conductor, ABC cable connector, Pre-insulated tension sleeve
Technical Specifications
- Conductive material: Aluminium 99.6% pure
- Insulating material: Thermoplastic polymer
- Operating temperature range: -55°C to 100°C
- Internal coating: Contact grease for improved conductivity
- Conformant standards: HN 33 S 66 August 1985 EDF, HN 33 E 60 August 1988 EDF
- Approved by Electricity Services Victoria, Energy Australia, and other recognized authorities
- Dimensions (H x L x W): 30mm x 150mm x 95mm
- Weight: 0.5 kg
Key Features
- Pre-insulated tension sleeve designed for full tension joining of ABC cables
- 1050A aluminium tube coated internally with contact grease and a stop for correct conductor positioning
- Insulated with a strong thermoplastic polymer sheath
- Ends have additional insulation rings colored to indicate conductor size
- Markings for crimping order, insulation strip length, die size, fitting reference, and color code for size selection
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals following the crimping instructions and safety standards to ensure proper connection and compliance.
Applications
- Full tension joining of Aerial Bundled Conductor (ABC) cables in overhead power lines
- Electrical power connectivity for low voltage ABC cables
- Suitable for use in electrical distribution and transmission networks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Thermoplastic polymer insulation is designed for long service life, reducing environmental impact
- Improves electrical connection efficiency, potentially reducing energy losses
Warranty Information
Warranty details available upon request from the manufacturer or supplier.
Available Now
The Cabac Pre-Insulated Compression Sleeve 95mm is available for immediate purchase, ideal for electrical contractors and utilities working with ABC cable installations.
