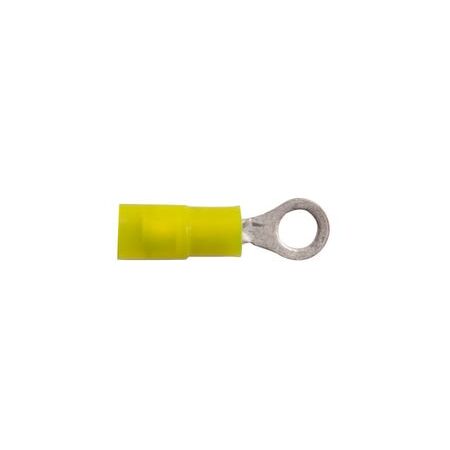

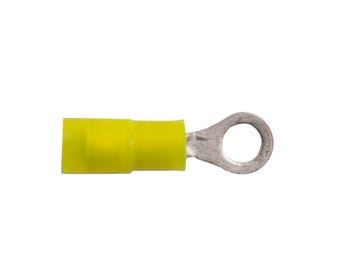

Pre-Insulated Ring Terminal for 0.2-0.5mm Cable | 300V Rating | Double Grip Design | Yellow by Cabac

BRAND: CABAC
SKU: RT0.3-3DG
$60.30 List price: $73.00
+ −
30 Days Return Delivery Options
Cabac Yellow Pre-Insulated Ring Terminal designed for 0.2-0.5mm cables with a 3mm stud and double grip for secure electrical connections, compliant with AS 3169 and AS 4437 standards.

Product Name/Title: PRE-INSULATED RING TERMINAL (0.2-0.5MM CABLE) YELLOW 3MM STUD DOUBLE GRIP

Brand: Cabac

SKU: RT0.3-3DG

Alternatively Known As: Pre-insulated ring terminal, double grip ring terminal, yellow insulated terminal, 3mm stud terminal, fine conductor terminal

Technical Specifications
  • Conductor range: 0.2 to 0.5mm cable
  • Voltage rating: 300V AC/DC
  • Conductive material (Quick Connect Range): Brass 30% Zinc, 70% Copper
  • Tensile strength (Brass): 580 MPa
  • Working temperature: Pre-insulated -40°C to +105°C
  • Conductive material (Except Quick Connect Range): Copper 99.9% Pure
  • Tensile strength (Copper): 200 MPa
  • Electroplating: Tin, 2.5 microns thickness
  • Insulation material: PVC
  • Breakdown voltage: 1.5kV minimum
  • Insulation resistance: Above 100 meg ohms
  • Torque recommendations provided for metric hardware 8.8 tensile grade
  • Dimensions (H x L x W): 5mm x 20mm x 10mm
  • Weight: 0.01 kg
Key Features
  • High quality product meeting international standards
  • Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
  • Long term electrical integrity
  • Voltage rating 300V
  • Double grip design with separate crimp barrels for conductor and insulation
  • PVC insulated for electrical safety
  • Conforms to AS 3169 and AS 4437 standards
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
  • Electrical wiring and connectivity for fine conductors in the 0.2 to 0.5mm cable range
  • Suitable for use in automotive, industrial, and domestic electrical installations
  • Ideal for secure and reliable cable terminations requiring double grip crimping
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS 3169
  • AS 4437
Environmental Benefits
  • Durable materials reduce the need for frequent replacements
  • Ensures reliable electrical connections reducing energy loss
  • PVC insulation is designed for long-term use minimizing waste
Warranty Information

Warranty against manufacturing defects as per Cabac standard policy.

Available Now

The Cabac Yellow Pre-Insulated Ring Terminal 0.2-0.5mm Cable with 3mm Stud Double Grip is available now for immediate purchase. Ideal for electrical wiring and connectivity applications requiring secure and reliable cable terminations.
