Trade Discount 17%

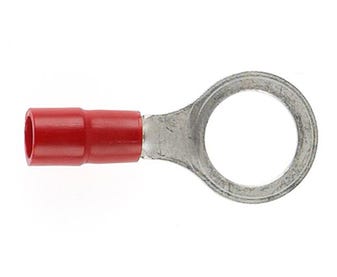

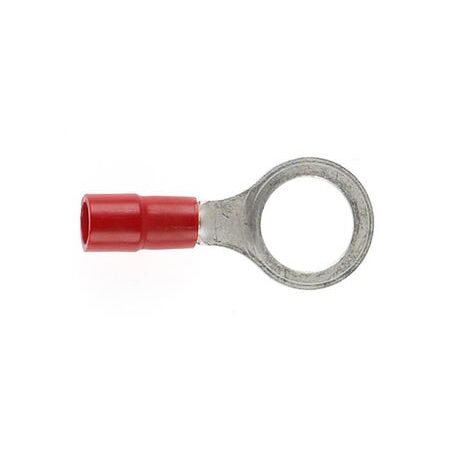

Pre-Insulated Ring Terminal 0.5-1.6mm | Red 8mm Stud | Double Grip by Cabac
Pre-insulated ring terminal with 0.5-1.6mm cable compatibility and red 8mm stud—ideal for high vibration environments. Built for automotive and industrial use, with double grip design for enhanced vibration resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PRE-INSULATED RING TERMINAL (0.5-1.6MM CABLE) RED 8MM STUD DOUBLE GRIP
Brand: Cabac
SKU: RT1.25-8DG
Alternatively Known As: Double Grip Ring Terminal, Pre-Insulated Electrical Terminal, Vibration Resistant Ring Terminal, Copper Sleeve Terminal
Technical Specifications
- Cable Size Compatibility: 0.5-1.6mm²
- Stud Size: 8mm
- Material: Copper terminal body with PVC insulation
- Temperature Rating: Up to 75°C
- Voltage Rating: 600V
- Design: Double grip with additional copper sleeve for enhanced vibration resistance
- Dimensions (H x L x W): 5mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- Double grip design engineered to withstand high vibration conditions.
- Additional copper sleeve enhances vibration resistance and improves wire insulation.
- Copper terminal body with PVC insulation for reliable electrical conductivity and insulation.
- Operates within a temperature range up to 75°C.
- Operating voltage of 600V.
Professional Installation Requirements
- Crimp terminals using a quality crimper specifically designed for this terminal type to ensure a secure and long-lasting connection.
Applications
- Automotive and Aerospace Industries: Ideal for use in vehicles, aircraft, and other transportation systems with high vibration levels.
- Heavy Machinery and Equipment: Suitable for industrial machinery and equipment subject to constant vibrations.
- Marine Applications: Well-suited for marine environments with vibrations from engines and machinery.
- Power Distribution Systems: Reliable for use in power distribution systems requiring stability and durability.
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, restricting hazardous substances to reduce environmental impact.
- REACH compliant, ensuring chemical safety and environmental protection.
Warranty Information
Warranty coverage subject to manufacturer terms; typically includes defects in materials and workmanship.
Available Now
The Cabac Pre-Insulated Ring Terminal Red 8mm Stud Double Grip is available for immediate purchase. Ideal for high vibration electrical applications in automotive, aerospace, marine, and industrial machinery.
