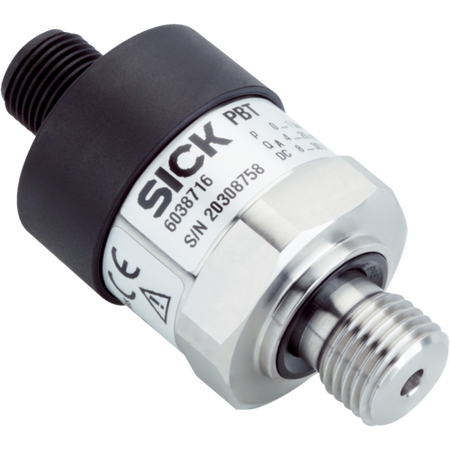

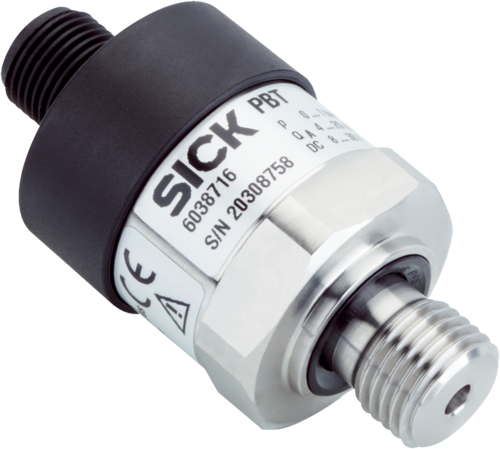

Pressure Transmitter PBT-RB250SG1SSNALA0Z 0-250 Bar Measuring Range IP65 Rated SICK

BRAND: SICK
SKU: 6041438
$431.40 List price: $542.20
+ −
30 Days Return Electricians Unlock Trade Access
The Pressure Transmitter PBT-RB250SG1SSNALA0Z is designed for precise gauge pressure measurement in liquid and gaseous media

Alternatively Known As: Pressure Transmitter, Pressure Sensor 0-250 bar, Gauge Pressure Sensor, Industrial Pressure Transmitter

Technical Specifications
  • Medium: Liquid, gaseous
  • Pressure type: Gauge pressure
  • Measuring range: 0 bar to 250 bar
  • Process temperature range: 0 °C to +80 °C
  • Output signal: 4 mA to 20 mA, 2-wire
  • Supply voltage: 8 V DC to 30 V DC
  • Process connection: G ¼ A (ISO 1179-2)
  • Wetted parts: Stainless steel 316L
  • Housing material: Stainless steel
  • Connection type: L-connector (DIN EN 175301-803 A)
  • Enclosure rating: IP65
  • Electrical safety: Overvoltage protection 32-36 V DC, short-circuit and reverse polarity protection
  • Accuracy: ≤ ±1% of span
  • Response time: < 4 ms
  • Service life: Minimum 100 million load cycles
  • MTTF: 815 years
  • Dimensions (H x L x W): 80mm x 80mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Measuring range from 0 to 250 bar
  • Gauge pressure measurement
  • Output signal: 4 mA to 20 mA, 2-wire
  • Process connection: G ¼ A (ISO 1179-2)
  • Wetted parts made of stainless steel 316L
  • Housing made of stainless steel
  • IP65 rated enclosure for protection against dust and water
  • Overvoltage, short-circuit, and reverse polarity protection
  • Fast response time under 4 ms
  • High accuracy with ≤ ±1% of span
  • Long service life with minimum 100 million load cycles
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
  • Measurement of gauge pressure in liquid and gaseous media
  • Industrial process control and monitoring
  • Hydraulic and pneumatic systems
  • Machinery and equipment pressure monitoring
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable stainless steel construction extends product life, reducing waste
  • Low power consumption enhances energy efficiency
  • High accuracy reduces process errors and material waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK PBT-RB250SG1SSNALA0Z Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications.
