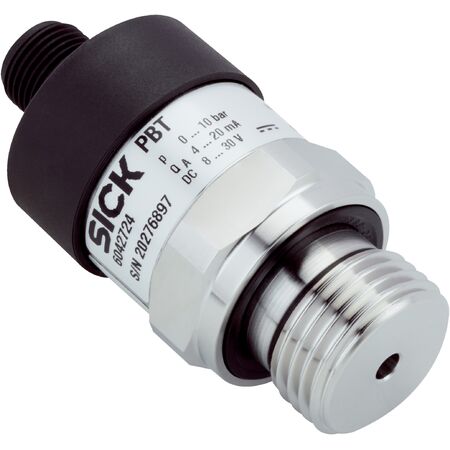

Pressure Transmitter PBT-RBX25AGESSSAMA0Z 0-0.25 Bar Range High Accuracy SICK

BRAND: SICK
SKU: 6078855
$1,074.00 List price: $1,350.00
+ −
30 Days Return Electricians Unlock Trade Access
The Pressure Transmitter PBT-RBX25AGESSSAMA0Z measures gauge pressure in both liquid and gaseous media
Technical Specifications
  • Dimensions (H x L x W): 70mm x 70mm x 25mm
  • Weight: 0.1 kg
Key Features
  • Measures gauge pressure in liquid and gaseous media
  • Measuring range from 0 bar to 0.25 bar
  • High accuracy with ≤ ±0.5% of span including non-linearity and hysteresis
  • Fast response time under 4 ms
  • Robust stainless steel housing and wetted parts (316L stainless steel)
  • IP67 rated enclosure for dust and water protection
  • Overvoltage, short-circuit, and reverse polarity protection
  • Long service life with minimum 100 million load cycles
  • Output signal: 4 mA to 20 mA, 2-wire
  • Supply voltage range: 8 V DC to 30 V DC
  • M12 round 4-pin connector for electrical connection
Professional Installation Requirements
  • Installation by qualified personnel recommended to ensure proper connection and calibration.
Applications
  • Industrial process control for liquid and gaseous media
  • Pressure monitoring in manufacturing and automation systems
  • Use in environments requiring gauge pressure measurement
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable stainless steel construction extends product lifespan reducing waste
  • Low power consumption with max 25 mA signal current
  • High reliability reduces need for frequent replacements
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific terms.

Available Now

The SICK PBT-RBX25AGESSSAMA0Z pressure sensor is available for immediate purchase, ideal for industrial process control and automation applications.
