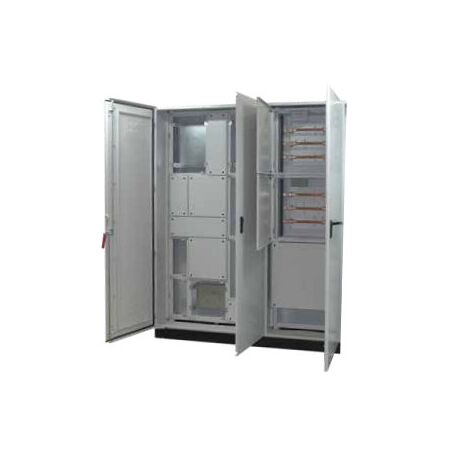

Primo Double Door Enclosure 20Hx10W | IP66 Rated | Aluminium | Secure Lock by B&R Enclosures
Primo double door enclosure with IP66 rating and robust aluminium construction—ideal for power distribution and metering in commercial and industrial settings. Built for durability, with secure 3-point locking and easy baying options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Primo Double door 20Hx10W Aluminium Encl. IP66
Brand: B&R Enclosures
SKU: TGBPRM20H10W/A
Alternatively Known As: Infinity 3G Metering Solution, Primo Power Distribution Unit
Technical Specifications
- Modular design for flexible configurations.
- Manufactured from 1.6mm zinc coated steel, 2mm aluminium, or 1.5mm 316 stainless steel.
- Formed in place polyurethane gasket for enhanced sealing.
- Dimensions (H x L x W): 2070mm x 480mm x 1070mm
- Weight: 50 kg
Key Features
- IP66 protection rating for outdoor and harsh environments.
- Robust construction for long service life.
- Available in 6 or 10 module wide sizes.
- Low profile door lock with secure 3 point locking system.
- Open sides for easy baying with optional side covers.
- Long life, 316 stainless steel hinges.
- Large 3mm aluminium gland plate for cable management.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety and compliance.
Applications
- Power distribution and metering applications in commercial and industrial settings.
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Infinity 3G – Primo Range is available now for immediate purchase, ideal for power distribution and metering applications.
