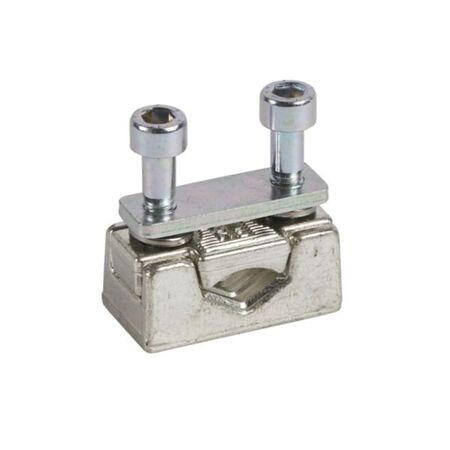

Prism Terminals for Copper and Aluminium Rail | Compatible with SPX Fuse Carriers 250A | Supports 70-150 mm² Conductor | by Legrand
Prism terminals for copper and aluminium rail are designed for SPX fuse carriers rated at 250A, making them ideal for electrical switchboards and control systems. With compatibility for conductor cross-sections from 70 to 150 mm², these terminals ensure reliable connections for both flexible and rigid multicore cables, enhancing safety and performance in industrial and commercial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Prism Terminals for Copper and Aluminium Rail | Compatible with SPX Fuse Carriers 250A | Supports 70-150 mm² Conductor | by Legrand
Brand: Legrand
SKU: 605223
Alternatively Known As: Prism Terminal Block, SPX Fuse Carrier Terminal, Copper Aluminium Rail Terminal
Technical Specifications
- Suitable for conductor cross-section: 70-150 mm²
- Rail dimension: 18x10 mm
- Cartridge size: 1
- Type of accessory: Contact set
- Compatible with SPX/SPX-V fuse carriers
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.2 kg
Key Features
- Cage (prism) terminals suitable for copper and aluminium rails
- Compatible with SPX fuse carriers 250A
- Supports conductor cross-section from 70 to 150 mm²
- Flexible rail dimension of 18x10 mm
- Designed for flexible or rigid multicore copper and aluminium cables
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical switchboards and power cabinets
- Control and signalling systems
- Industrial and commercial electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Compatible with aluminium conductors which are lighter and have a lower environmental footprint than copper
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Prism Terminals for copper and aluminium rail for SPX fuse carriers 250A are available for immediate purchase, ideal for use in electrical switchboards and control signalling applications.
