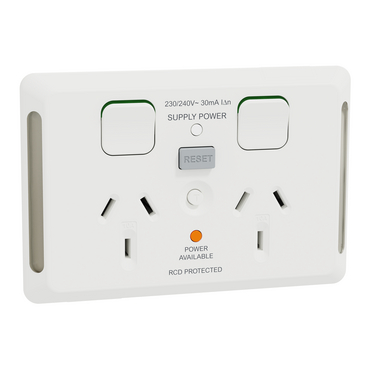

Pro Series Double Switched Socket RCD 30mA Integrated Safety Horizontal Design Pack of 1 by Clipsal

BRAND: Clipsal
SKU: P3025RCD30V2-XW
$200.90 List price: $262.70
+ −
30 Days Return Electricians Unlock Trade Access
The Pro Series Double Switched Socket RCD features an integrated 30mA RCD for enhanced electrical safety and double socket outlets for versatile power access. Ideal for commercial and industrial environments, this socket is built with antibacterial materials and includes LED indicators for clear power status, ensuring safety and convenience in any indoor space.

Alternatively Known As: Clipsal RCD Double Power Point, Clipsal Pro Series RCD Socket, Double Switched Socket with RCD, RCD Protected Power Outlet, Clipsal P3025RCD30V2-XW, Safety Power Point with RCD

Technical Specifications
  • Rated operational voltage: 230-240V AC, 50Hz
  • RCD Type: Type II, Type A, 30mA trip current
  • Socket outlets: Double, 10A rated, 2P+E with shutter
  • RCD rated current: 20A
  • LED indicators: Amber (RCD strip status), White (power supplied)
  • IP rating: IP20 (dust resistance)
  • IK rating: IK08 (impact protection)
  • Material: Polycarbonate, Polypropylene, Polyoxymethylene, ABS
  • Mounting: Horizontal wall-mount
  • Terminals: 3 screw terminals, accepts 1 x 2.5...4 x 2.5 mm² or 3 x 4 mm² cables
  • Wire stripping length: 16mm
  • Ambient operating temperature: 0–45°C
  • Relative humidity: 10–95%
  • Complies with AS/NZS 3100, AS/NZS 3190
  • RCM certified
  • Dimensions (H x L x W): 78mm x 44mm x 116mm
  • Weight: 0.18 kg
Key Features
  • Integrated 30mA RCD for enhanced electrical safety
  • Double switched socket outlets for versatile power access
  • Antibacterial material on user touchpoints
  • Amber and white LED indicators for clear RCD and power status
  • Windows for permanent circuit identification
  • Horizontal wall-mount design
  • Impact-resistant (IK08) and dust-resistant (IP20)
  • Screw terminal connections for secure wiring
  • Suitable for commercial and industrial environments
Professional Installation Requirements
  • Installation must be performed by a licensed electrician to ensure compliance with Australian standards and optimal safety.
Applications
  • Commercial buildings
  • Industrial facilities
  • Public spaces
  • Healthcare environments
  • Educational institutions
  • Any indoor area requiring RCD-protected power outlets
Standards & Compliance
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
  • AS/NZS 3100 – Approval and test specification – General requirements for electrical equipment
  • AS/NZS 3190 – Approval and test specification – Residual current devices (current-operated earth-leakage devices)
Environmental Benefits
  • Antibacterial surfaces help maintain hygiene in shared spaces
  • Durable construction reduces replacement frequency and waste
  • Energy-efficient LED indicators minimize power consumption
Warranty Information

18-month manufacturer warranty against defects.

Available Now

Available for immediate purchase. Ideal for commercial, industrial, and public indoor environments requiring reliable RCD-protected power outlets.
