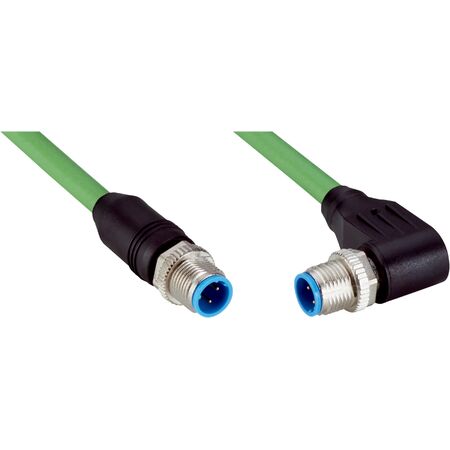

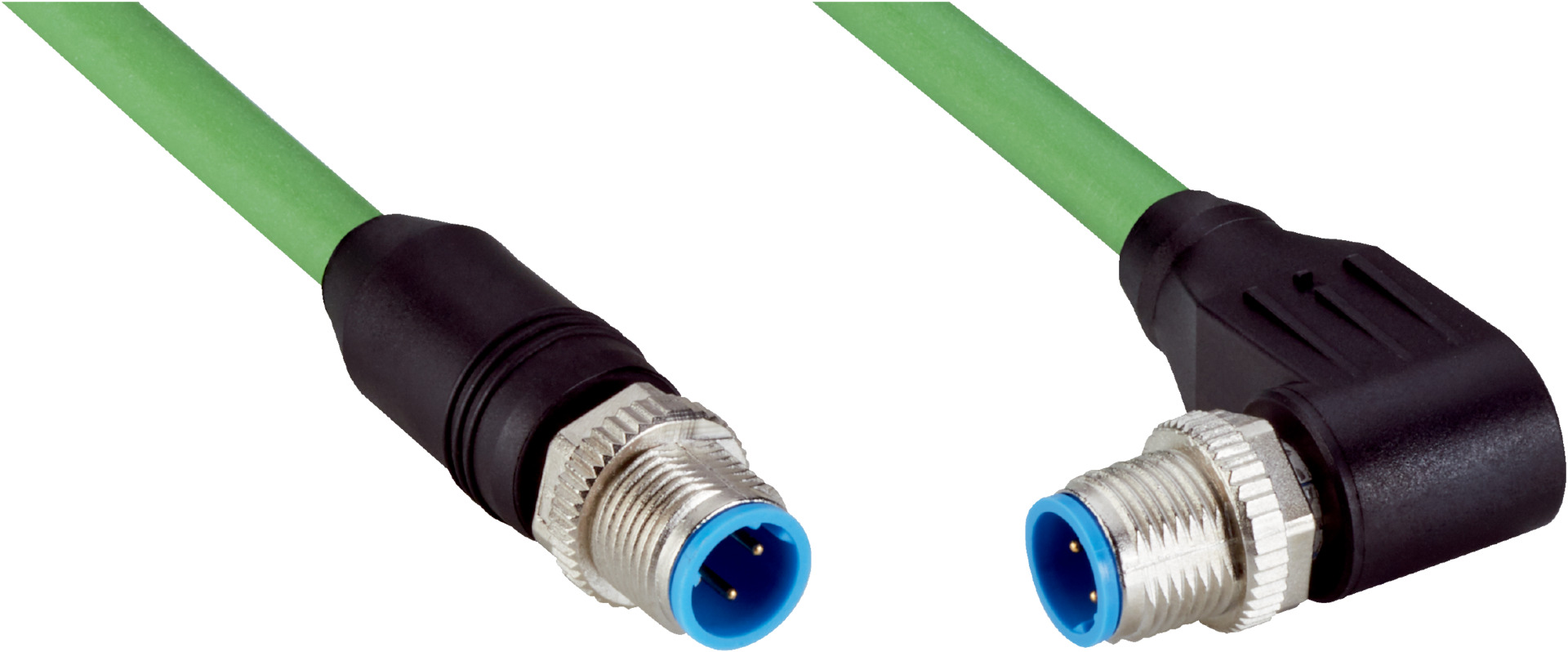

PROFINET Ethernet Cable M12 | Shielded PUR Halogen-Free | 10m Length | IP65/IP66K/IP67 Rated | by SICK
The PROFINET Ethernet Cable M12 is designed for industrial automation, featuring male M12 4-pin connectors in straight and angled configurations. With a robust 10m shielded PUR halogen-free cable, it ensures reliable data transmission in harsh environments, supporting Ethernet PROFINET with CAT5e characteristics. Ideal for drag chain operations, this cable withstands extreme temperatures and offers excellent dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, angled, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 12 x cable diameter
- Temperature range flexible use: -30°C to +70°C
- Temperature range stationary position: -40°C to +80°C
- Temperature range drag chain operation: -30°C to +70°C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male M12 4-pin connectors, straight and angled, D-coded
- Shielded PUR halogen-free cable with 10 m length
- High bending radius suitable for flexible and drag chain use
- IP65 / IP66K / IP67 rated for dust and water protection
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Operating temperature range from -40°C to +85°C depending on use
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Drag chain operation in zones with oils and lubricants
- PROFINET Ethernet data transmission in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design minimizes cable replacement frequency, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YM2D24-100PN1N2D24 PROFINET Ethernet Cable is available for immediate purchase, ideal for industrial automation and drag chain applications requiring robust and reliable Ethernet connectivity.
