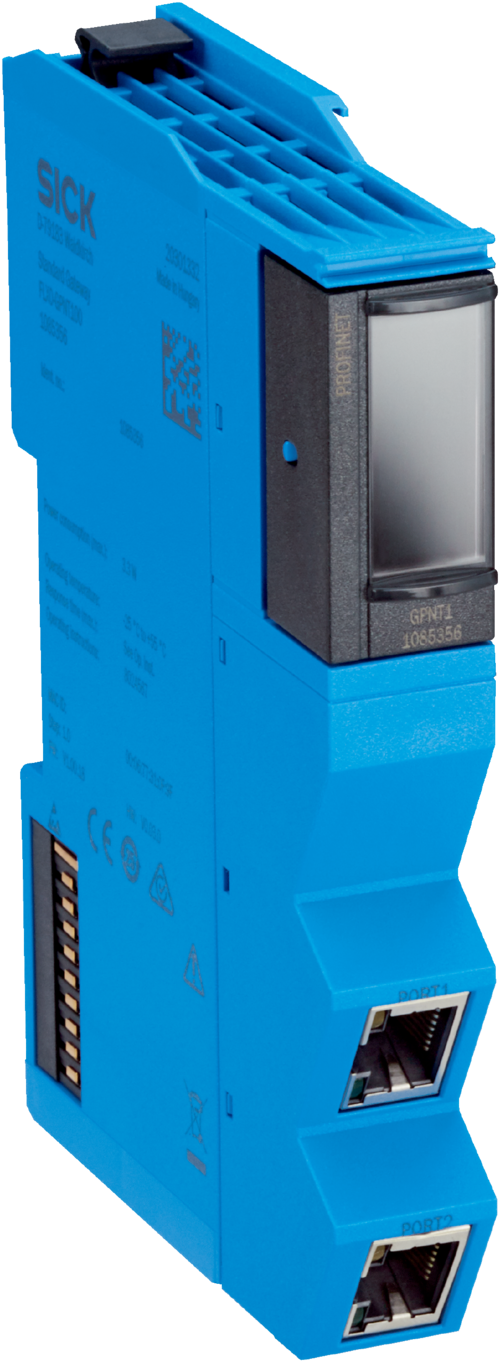

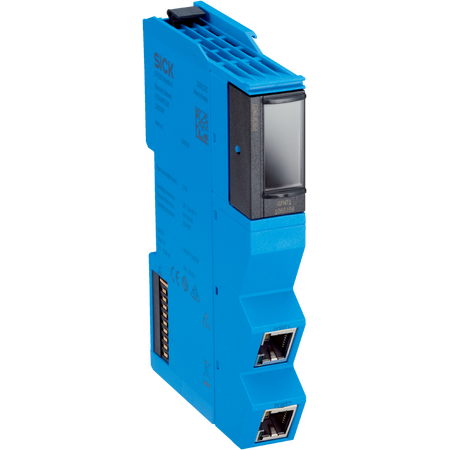

PROFINET Gateway Module FLX0-GPNT100 Integrated Switch IP20 Enclosure SICK

BRAND: SICK
SKU: 1085356
$1,315.00 List price: $1,652.90
+ −
30 Days Return Electricians Unlock Trade Access
The PROFINET Gateway Module FLX0-GPNT100 enables seamless data communication for safety controllers over PROFINET TCP IP sockets.
Technical Specifications
  • Module Type: Gateway
  • Fieldbus: PROFINET TCP/IP sockets
  • Configuration Method: Via Safety Designer software and TFT display
  • Fieldbus Interface: 2 x RJ45 female connectors with integrated switch
  • Power Loss: ≤ 3.3 W
  • Current Consumption: 135 mA at nominal voltage
  • Protection Class: III (EN 61140)
  • Interference Resistance: EN 61000-6-2
  • Interference Emission: EN 61000-6-4
  • Mounting: 35 mm × 7.5 mm mounting rail (IEC 60715)
  • Enclosure Rating: IP20 (EN 60529)
  • Operating Temperature: -25 °C to +55 °C
  • Storage Temperature: -25 °C to +70 °C
  • Humidity: ≤ 95%, Non-condensing
  • Vibration Resistance: 1 g, 5 Hz to 200 Hz
  • Shock Resistance: 15 g, 11 ms
  • Dimensions (H x L x W): 124.7mm x 85.5mm x 18mm
  • Weight: 0.108 kg
Key Features
  • Enables safety controller to send and receive data over PROFINET TCP/IP sockets
  • Supports multiple application communication with safety controller via TCP/IP
  • Configuration via Safety Designer software and TFT display
  • Equipped with integrated switch for network connection without interruption
  • Two RJ45 female connectors for fieldbus interface
  • Mounting on standard 35 mm × 7.5 mm mounting rail
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with PROFINET networks and safety controller integration to ensure compliance and optimal performance.
Applications
  • Industrial automation networks requiring safety controller data communication
  • PROFINET TCP/IP network integration for control and diagnostics
  • Safety controller configuration and monitoring via TCP/IP
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Supports efficient network communication reducing need for additional hardware
  • Low power consumption of ≤ 3.3 W reduces energy usage
  • Designed for long operational life minimizing electronic waste
Warranty Information

Warranty details available upon request from manufacturer.

Available Now

The SICK FLX0-GPNT100 Gateway Module is available for immediate purchase, ideal for industrial automation and safety network applications.
