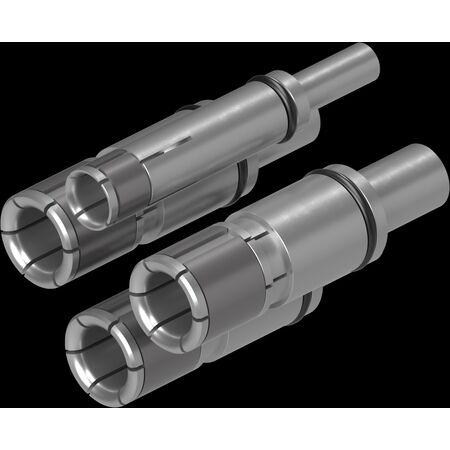

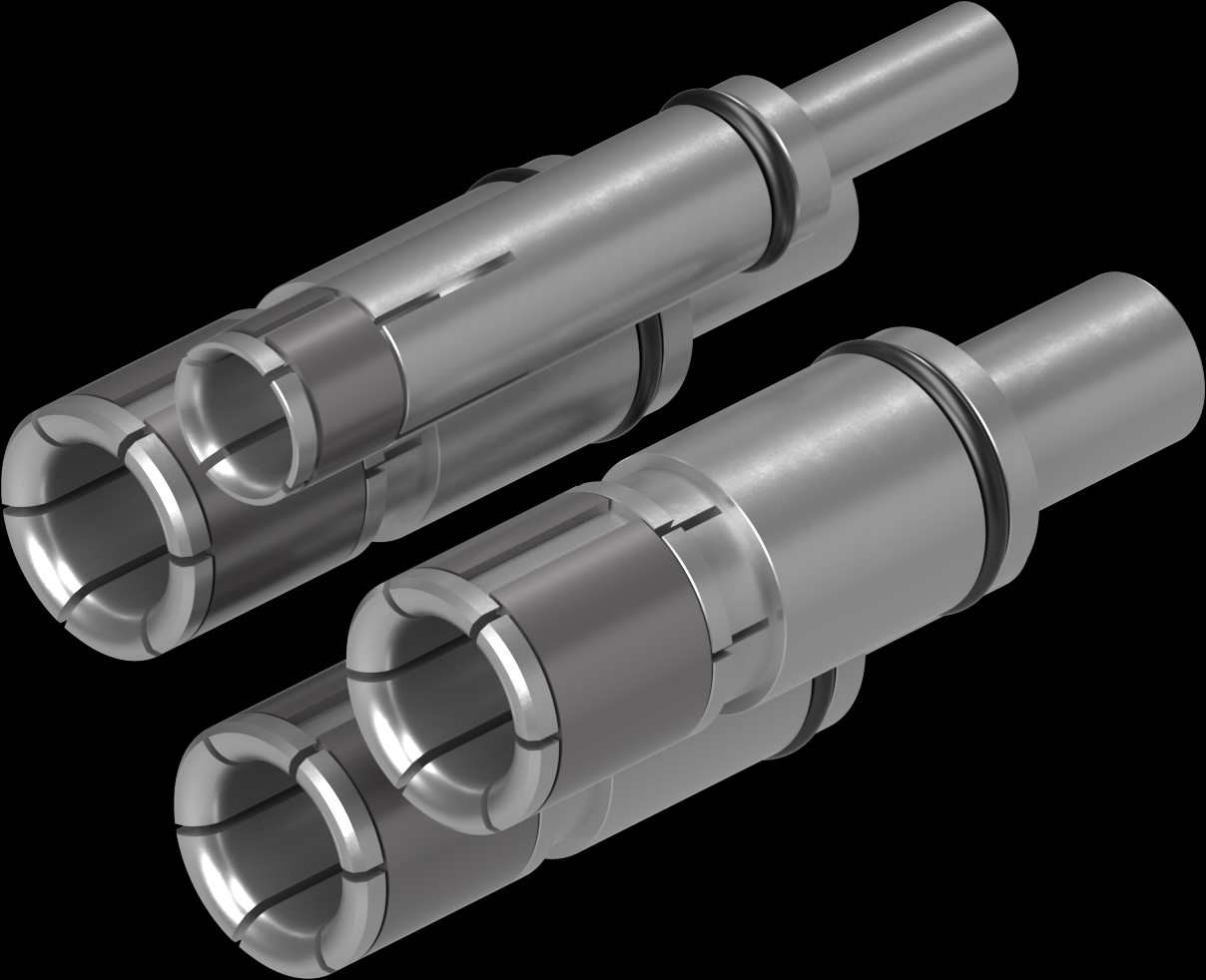

PS Plug Cage Kit 25-95mm² | 150A Current Rating | IP55 Ingress Protection | Stainless Steel by Ausproof
The PS Plug Cage Kit 25-95mm² is designed for reliable electrical connections in mining and hazardous environments, featuring a 150A current rating and IP55 ingress protection. Built for safety and durability, this stainless steel kit ensures easy on-site repairs and compliance with Ex-rated standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PS Plug Cage KIT 25-95mm^2
Brand: Ausproof
SKU: RS1804
Alternatively Known As: PS Range Plug Cage Kit, Flameproof Plug and Receptacle, Ex-rated Electrical Plug Kit, Mining Electrical Plug Kit
Technical Specifications
- Voltage Range: 660 to 1,100V
- Current Rating: 150A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 12.5kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 4.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 4.2kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 150A operation
- Weight: Receptacle 7.9kg, Plug 4.1kg
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 7.9 kg
Key Features
- Quick Release mechanism for easy operation
- Single piece contacts to prevent hot joints
- Easy termination and flameproof repair on-site
- Full solid earth connectivity throughout the product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover included
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with Ex-rated equipment and hazardous area installations to ensure compliance and safety.
Applications
- Mining and tunnelling operations
- Commercial electrical installations
- Group 1 hazardous environments requiring flameproof electrical connections
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Flameproof design enhances safety, reducing risk of environmental hazards
- Easy on-site repair minimizes downtime and resource use
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PS Plug Cage KIT 25-95mm² is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial electrical applications requiring flameproof and reliable connections.
