PU3H21-00000000 | Mounting systems

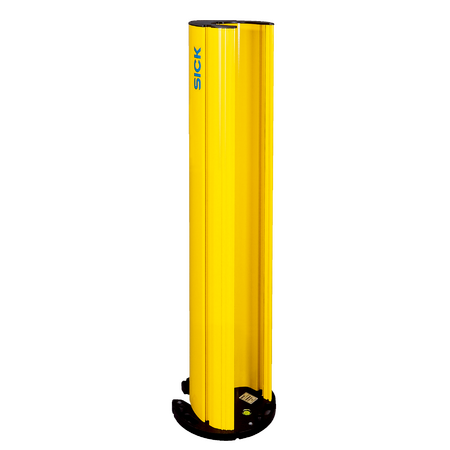

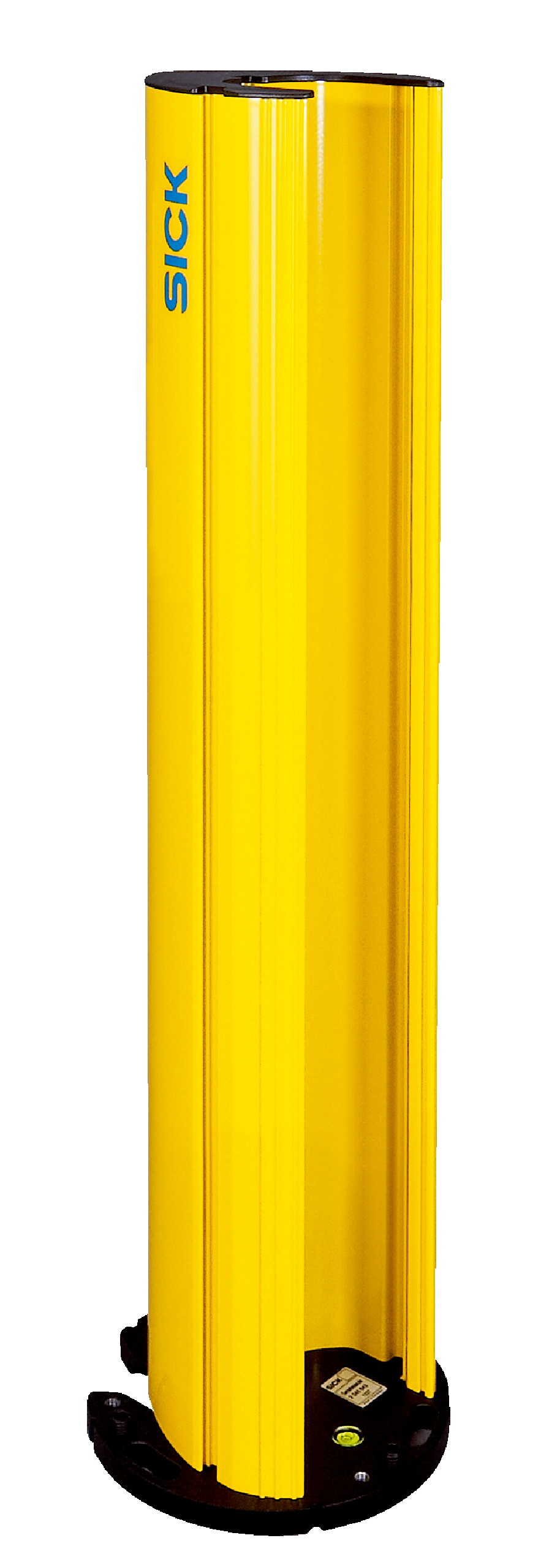

The SICK PU3H21-00000000 is a robust mounting system device column designed for safety light curtains and light-beam sensors, providing mechanical protection and flexible mounting options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PU3H21-00000000 | Mounting systems
Brand: SICK
SKU: 2045644
Alternatively Known As: Safety Light Curtain Mounting Column, Protective Device Column, Safety Sensor Mounting System
Technical Specifications
- Material: Aluminum column profile and base plate with powder coating, ABS end cap
- Column height: 2,040 mm
- Maximum installation length: 2,400 mm
- Cross-section of column profile: 138.4 mm x 134.7 mm
- Diameter of base plate: 180 mm
- Weight: 14.61 kg
- Mounting system type: Mechanical anchoring to the floor
- Compatible with FlexFix, QuickFix, Flat-Mount, Swivel-Mount, Omega brackets
- Supports additional accessories such as muting arms
- Dimensions (H x L x W): 2040mm x 134mm x 138mm
- Weight: 14.61 kg
Key Features
- Robust device column with two external mounting slots
- Maximum installation length 2,400 mm
- Column height 2,420 mm
- Mechanical anchoring to the floor
- Compatible with FlexFix, QuickFix, Flat-Mount, Swivel-Mount, and Omega brackets
- Enables installation of additional accessories such as muting arms
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mechanical anchoring and proper integration with safety devices.
Applications
- Mounting suitable safety light curtains and safety light-beam sensors
- Protecting devices from mechanical influences from three sides
- Industrial safety installations requiring robust device columns
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum construction with powder coating for long service life reducing replacement waste
- Enables secure installation of safety devices contributing to safer industrial environments
Warranty Information
Warranty information not specified; please refer to SICK official warranty policy.
Available Now
The SICK PU3H21-00000000 Mounting System Device Column is available for immediate purchase, ideal for industrial safety applications requiring robust mounting solutions.
