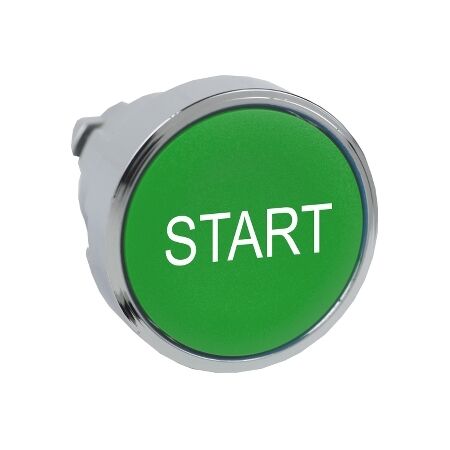

Push Button Head 22mm | Spring Return | Green Flush Marked START by Clipsal
Push button head with 22mm diameter and spring return mechanism—ideal for industrial control panels. Built for durability, with IP69K rating and marked 'START' for easy identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony XB4, push-button head, metal, flush, green, 22mm, spring return, marked START
Brand: Clipsal
SKU: ZB4BA333
Alternatively Known As: Harmony XB4 Push Button, Green Push Button Head, Industrial Push Button
Technical Specifications
- Type: Head for non-illuminated push-button
- Marking: START
- Bezel Material: Chromium plated metal
- Vibration Resistance: 5 gn (f= 2-500 Hz)
- Shock Resistance: 30 gn (duration = 18 ms)
- Overvoltage Category: Class I
- NEMA Degree of Protection: NEMA 13, NEMA 4X
- Dimensions (H x L x W): 29mm x 29mm x 22.5mm
- Weight: 0.028 kg
Key Features
- Spring return mechanism for quick reset.
- IP66, IP67, IP69K rated for high protection against dust and water.
- Mechanical durability of 10 million cycles.
- Marked with 'START' for easy identification.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery, automation systems
Standards & Compliance
- Complies with IEC 60947-5-4, IEC 60947-5-5, and other relevant standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Push-Button Head in green is available now for immediate purchase. Ideal for industrial control applications.
