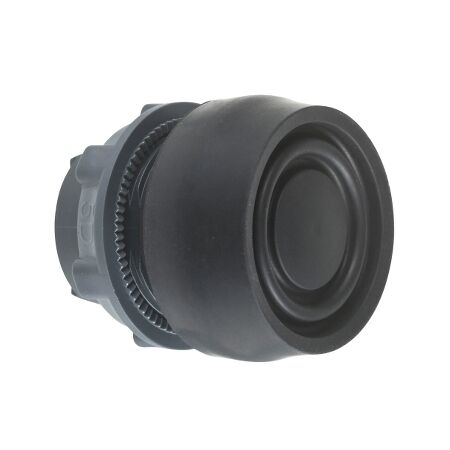

Push Button Head 22mm | Spring Return | IP69K Rated | Black Flush by Clipsal

BRAND: Clipsal
SKU: ZB5AP2S
$31.80 List price: $47.70
+
Push button head with 22mm mounting diameter and spring return—ideal for industrial and commercial control panels. Built for durability, with IP69K rating and black flush design for high protection against dust and water.

Product Name/Title: Harmony XB5, push-button head, plastic, flush, black, 22mm, spring return, coloured boot, unmarked

Brand: Clipsal

SKU: ZB5AP2S

Alternatively Known As: Harmony XB5 Push Button, XB5 Push Button Head, Clipsal Push Button

Technical Specifications
  • Type: Head for non-illuminated push-button
  • Mounting diameter: 22 mm
  • Bezel material: Dark grey plastic
  • Shape: Round
  • Operator profile: Black flush, unmarked
  • Resistance to high pressure washer: 7000000 Pa at 55 °C
  • Shock resistance: 30 gn for half sine wave acceleration
  • Vibration resistance: 5 gn (f= 2-500 Hz)
  • Dimensions (H x L x W): 30mm x 33mm x 30mm
  • Weight: 0.021 kg
Key Features
  • IP66, IP67, and IP69K rated for high protection against dust and water.
  • Mechanical durability of 10 million cycles.
  • Spring return operator with a black flush design.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Control panels, machinery interfaces
  • Commercial: Equipment control in various settings
Standards & Compliance
  • Complies with IEC 60947-5-1 and other relevant standards.
Environmental Benefits
  • Green Premium product with packaging made from recycled cardboard.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony XB5 Push-Button Head is available now for immediate purchase. Ideal for industrial control applications.

ZB5AP2S (ZB5AP2S, 831 Kb) [Download]
