Trade Discount 33%

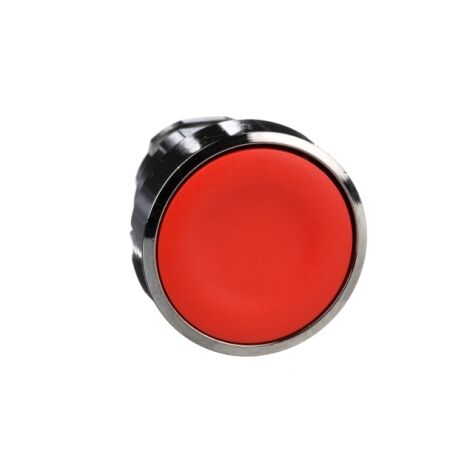

Push Button Head 22mm | Spring Return | IP69K Rated | Red by Clipsal
Push button head with 22mm mounting diameter and spring return—ideal for industrial control panels. Built for durability, with IP69K rating for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony XB4, push-button head, metal, flush, red, 22mm, spring return, unmarked
Brand: Clipsal
SKU: ZB4BA4
Alternatively Known As: Harmony XB4 Push Button, Red Push Button Head, Industrial Push Button
Technical Specifications
- Type: Head for non-illuminated push-button
- Bezel Material: Chromium plated metal
- Mounting Diameter: 22.5 mm
- Overvoltage Category: Class I conforming to IEC 60536
- Vibration Resistance: 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Shock Resistance: 30 gn (duration = 18 ms) conforming to IEC 60068-2-27
- Dimensions (H x L x W): 29mm x 28mm x 29mm
- Weight: 0.029 kg
Key Features
- Mechanical durability of 10,000,000 cycles.
- IP66, IP67, IP69, and IP69K rated for protection against dust and water.
- Spring return operator for reliable performance.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery, and equipment.
Standards & Compliance
- Complies with IEC 60947-5-1 and other relevant standards.
Environmental Benefits
- Green Premium product with packaging made from recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Push-Button Head in red is available now for immediate purchase. Ideal for industrial control applications.
