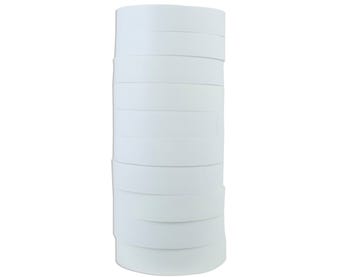

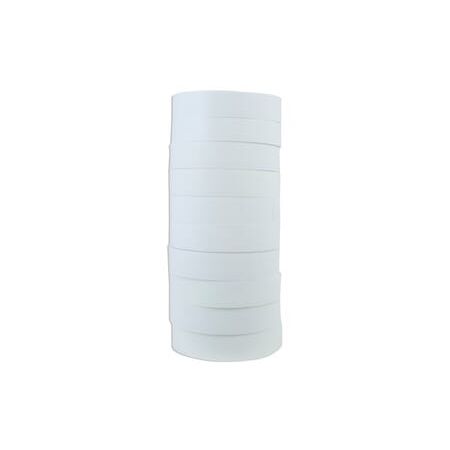

PVC Insulation Tape Pack of 10 | 0.135mm Thickness | Flame Retardant | White by Cabac
PVC insulation tape with 0.135mm thickness and flame retardant properties—ideal for electrical insulation and wire harnessing. Built for durability, with strong adhesion and resistance to weather, oil, and acids.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulation Tape White Pack of 10 Rolls
Brand: Cabac
SKU: ITWH/10
Alternatively Known As: PVC Electrical Tape, Electrical Insulation Tape, Wire Harness Tape, Cable Wrapping Tape, Flame Retardant Insulation Tape
Technical Specifications
- Material Composition: PVC
- Thickness: 0.135 mm
- Adhesive Type: Rubber
- Adhesion Strength: >0.32 kg/19mm
- Elongation: >150%
- Dielectric Strength: 40 kV/mm
- Tensile Strength: >4.7 kg/25mm
- Flame Retardant: Yes
- Resistance: Weather, oil, and acid
- Operating Temperature: 0 to 90°C
- Dimensions (H x L x W): 20mm x 2000mm x 19mm
- Weight: 0.1 kg
Key Features
- Standard grade electrical PVC insulation tape
- Thickness of 0.135mm
- Rated up to 600V
- Durable elasticity and strong adhesion
- Flame retardant
- Resistant to weather, oil, and acids
- Operates effectively within 0 to 90°C temperature range
- RoHS and REACH compliant
Professional Installation Requirements
- No professional installation required; suitable for manual application following surface preparation instructions.
Applications
- Identification and coding of electrical components
- Harnessing and bundling wires and cables within electrical systems
- General wire wrapping for secure and durable protection
- Basic insulation for electrical connections and components
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS and REACH compliant, ensuring restriction of hazardous substances and chemicals
- Durable and long-lasting, reducing waste from frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
Cabac Insulation Tape White Pack of 10 Rolls is available now for immediate purchase. Ideal for electrical insulation, wire harnessing, and identification in industrial and residential applications.
