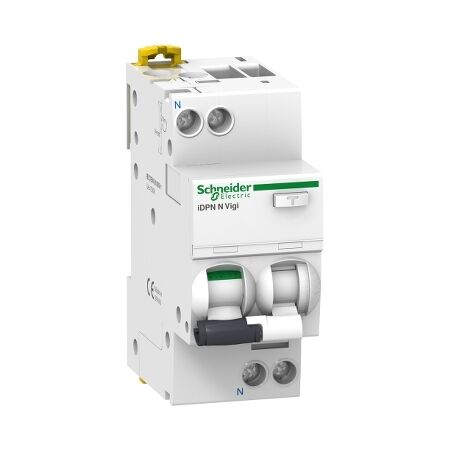

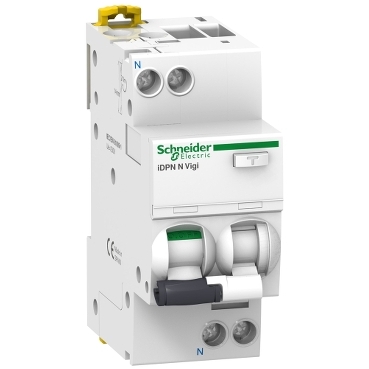

RCBO 1P+N 10A 6kA 30mA Sensitivity C Curve DIN Rail Acti9 Clipsal

BRAND: Clipsal
SKU: SCHA9D32610
$58.80 List price: $73.30
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Acti9 1-pole + neutral 10A RCBO features 6kA breaking capacity, 30mA residual protection and C-curve tripping. Ideal for final subcircuit protection.

Product Name/Title: RCBO 10A 6KA 240V 30mA | Combined RCD & MCB | DIN Rail Mount | by Clipsal

Brand: Clipsal

SKU: SCHA9D32610

Alternatively Known As: Residual Current Circuit Breaker with Overcurrent, RCBO breaker, Clipsal RCBO, 10A RCBO, SCHA9D32610

Technical Specifications
  • Rated current: 10A
  • Breaking capacity: 6kA
  • Rated voltage: 240V AC
  • Residual current sensitivity: 30mA
  • Number of poles: 1P+N
  • Mounting: DIN rail, 4 module width
  • Test button: Yes
  • Trip curve: C
  • Dimensions (H x L x W): 85mm x 75mm x 72mm
  • Weight: 0.25 kg
Key Features
  • Combined residual current device (RCD) and miniature circuit breaker (MCB) in one unit
  • Rated current: 10A
  • Breaking capacity: 6kA
  • Rated voltage: 240V AC
  • Residual current sensitivity: 30mA
  • 4 module width for DIN rail mounting
  • Provides protection against earth leakage, overload, and short circuit
  • Test button for regular safety checks
Professional Installation Requirements
  • Must be installed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
  • Residential electrical distribution boards
  • Commercial switchboards
  • Industrial electrical panels
  • Protection of lighting and power circuits
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 61009 – Residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
  • Enhances electrical safety, reducing risk of fire and electrical accidents
  • Long operational life reduces replacement frequency and waste
Warranty Information

12 months manufacturer's warranty against defects.

Available Now

The Clipsal RCBO 10A 6kA 240V 30mA 4M (SCHA9D32610) is available for immediate purchase. Ideal for residential, commercial, and industrial electrical safety applications.
