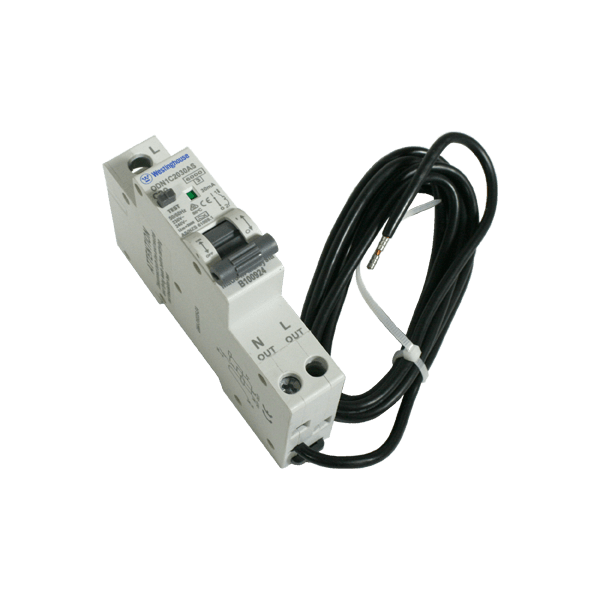

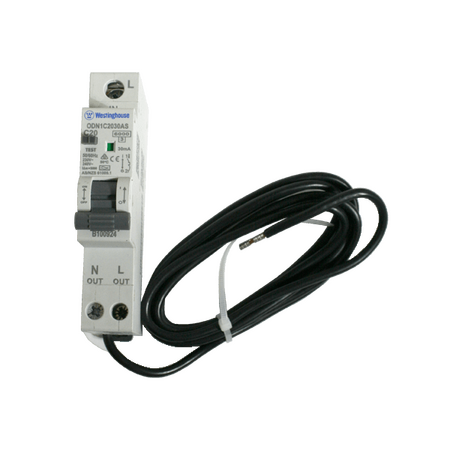

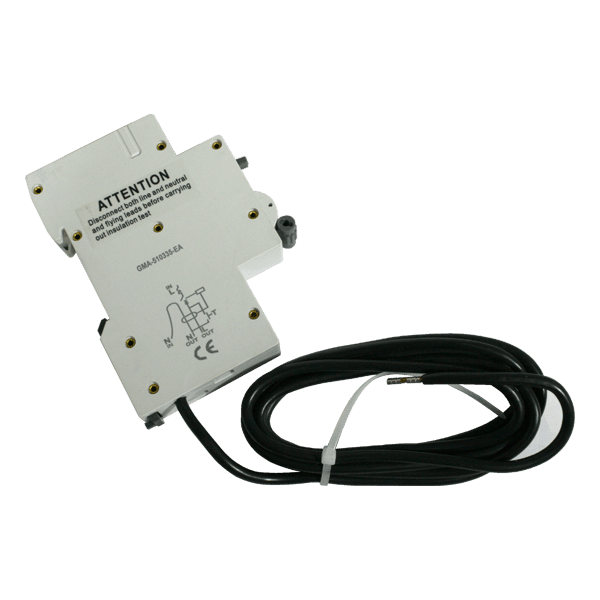

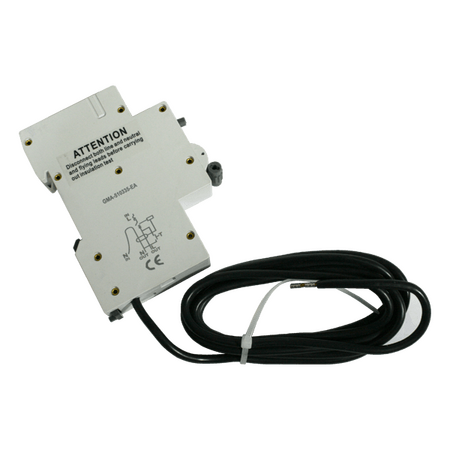

RCBO 20A 30mA 1P C Curve 6kA Chassis Mount Eltech
Eltech RCBO features 20A C curve rating, 30mA sensitivity and 6kA breaking capacity in chassis-mount format. Ideal for switchboard circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Eltech RCBO 20 A 30 mA Type A C‑Curve 6 kA
Technical Specifications
- Rated current: 20 A
- Residual operating current: 30 mA (Type A)
- Breaking capacity (Icn/Ics): 6 kA
- Rated voltage: 240 VAC
- Frequency: 50/60 Hz
- C‑curve trip characteristic
- Type A residual tripping characteristic
- Operating temperature: –5 °C to +40 °C
- Mechanical endurance: 20 000 cycles
- Electrical endurance: 10 000 cycles
- Connection torque: 2.5 Nm
- Residual making & breaking capacity: 3000 A
- Mounting: DIN‑rail chassis
- Dimensions (H x L x W): 86mm x 74mm x 18mm
- Weight: 0.12 kg
Key Features
- Over‑current and earth‑leakage protection combined
- Compact, chassis‑mount format for DIN‑rail installation
- High breaking capacity (6 kA) for fault resilience
- C‑curve characteristic for general applications
- Type A sensitivity for pulsating DC leakage protection
Professional Installation Requirements
- Installation should be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential, commercial or light‑industrial switchboard circuit protection
- Single‑phase branch circuit protection combining overload and earth‑leakage protection
Standards & Compliance
- Meets IEC 61009‑1 (equivalent to AS/NZS 61009.1)
- Compliant with Energy Safe Victoria additional testing for RCBOs
Environmental Benefits
- Combines two protection functions in one device reducing material and space
- Durable mechanical and electrical endurance extends service life
Warranty Information
Refer to Eltech Australia’s standard product warranty; no specific period published online.
Available Now
Available through authorised Eltech distributors in Australia.
