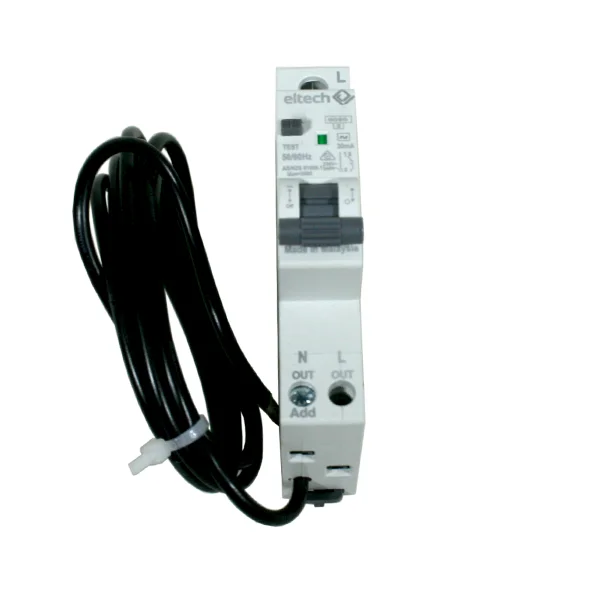

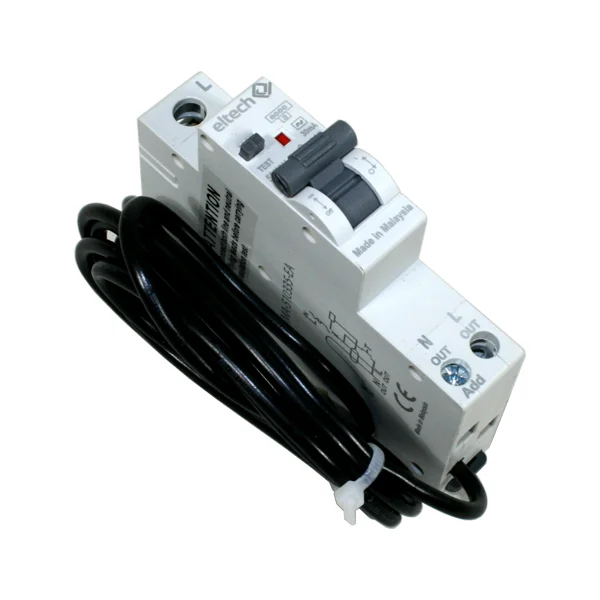

RCBO 32A 1 Pole + Neutral | 6kA Breaking Capacity | 30mA Sensitivity | A Type by Eltech
RCBO 32A 1 pole + neutral circuit breaker with 6kA breaking capacity and 30mA A type sensitivity—ideal for residential and commercial electrical systems. Built for safety and reliability, it provides combined overcurrent and earth leakage protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 32A
- Residual Current: 30mA (A Type)
- Breaking Capacity: 6kA
- Poles: 1 pole + neutral
- Type: A (sensitive to AC and pulsating DC residual currents)
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.2 kg
Key Features
- 32 Ampere rated current
- 30mA residual current sensitivity - A type
- 6kA short circuit breaking capacity
- 1 pole plus neutral configuration
- Provides combined overcurrent and earth leakage protection
Professional Installation Requirements
- Must be installed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Residential electrical distribution boards
- Commercial electrical panels
- Industrial power distribution and circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Helps prevent energy waste by quickly isolating faulty circuits
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eltech RCBO 32A 1 Pole + Neutral 6kA 30mA A Type is available for immediate purchase, ideal for enhancing electrical safety in residential, commercial, and industrial power distribution systems.
