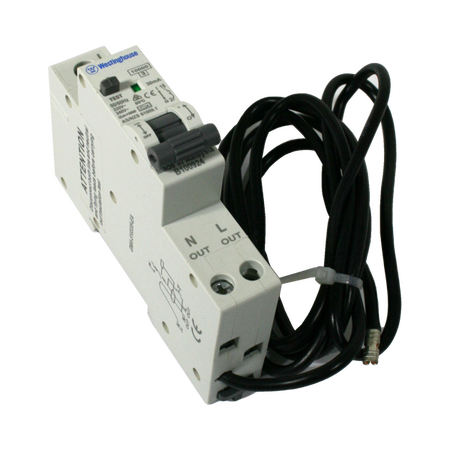

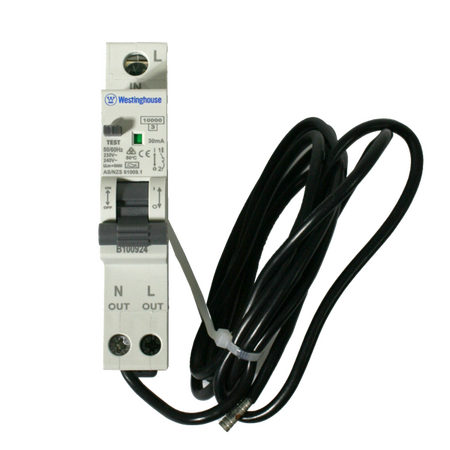

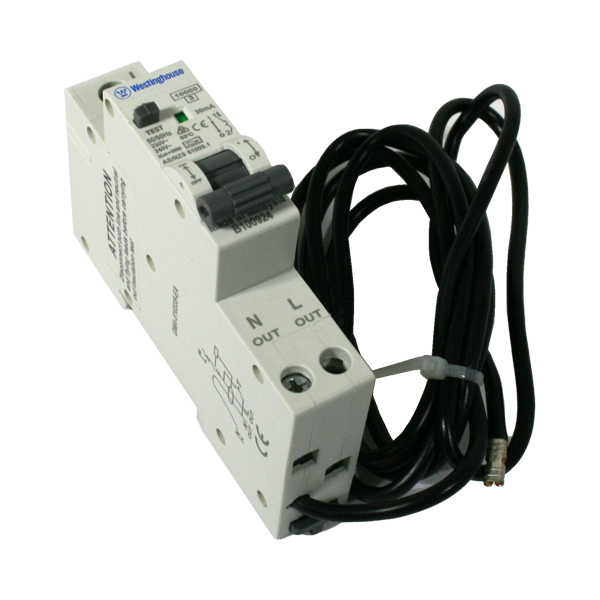

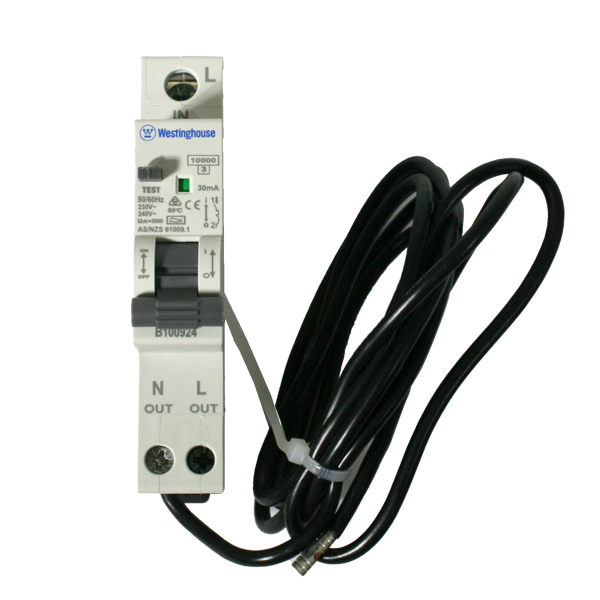

RCBO 32A 30mA 1P C Curve | 10kA Breaking Capacity | Chassis Mount Design by Eltech
RCBO 32A with 30mA sensitivity and C Curve tripping—ideal for residential and commercial power distribution. Built for safety and reliability, featuring a 10kA breaking capacity and chassis mount for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 32A 30mA 1P C Curve 10kA Chassis Mount
Brand: Eltech
SKU: ODN1C3230AH
Alternatively Known As: Residual Current Breaker with Overcurrent, RCBO 32A 30mA, 1 Pole RCBO, C Curve RCBO, 10kA RCBO
Technical Specifications
- Rated Current: 32A
- Residual Current: 30mA (A type)
- Pole: Single Pole with Neutral
- Tripping Curve: C Curve
- Breaking Capacity: 10kA
- Mounting Type: Chassis Mount
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.2 kg
Key Features
- 32 Ampere rated current
- 30mA residual current sensitivity (A type)
- C Curve tripping characteristic for general use
- 10kA short circuit breaking capacity
- 1 Pole with neutral protection
- Chassis mount design for secure installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Residential electrical distribution boards
- Commercial power distribution panels
- Industrial circuit protection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy efficiency by preventing electrical faults and power loss
Warranty Information
Standard manufacturer warranty of 1 year against defects.
Available Now
The Eltech RCBO 32A 30mA 1P C Curve 10kA Chassis Mount is available now for immediate purchase. Ideal for enhancing safety in power distribution systems across residential, commercial, and industrial settings.
