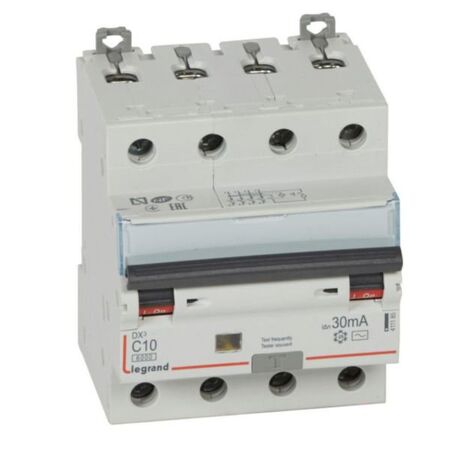

RCBO DX³ 6000A 4 Poles 10A Curve C Type AC 30mA | 6kA Breaking Capacity | IP20 Rated | @Each of 1 | by Legrand
The RCBO DX³ 6000A 4 Poles 10A Curve C Type AC 30mA is designed for reliable overload and residual current protection in residential and small commercial electrical panels. With a breaking capacity of 6000A and a sensitivity of 30mA, it ensures safety against electrical faults. Ideal for photovoltaic systems, this device features an IP20 rating and is equipped with a test button for easy functionality checks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO DX³ 6000A 4 Poles 10A Curve C Type AC 30mA | 6kA Breaking Capacity | IP20 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 411185
Alternatively Known As: Residual Current Breaker with Overload (RCBO), DX3 RCBO, 4 Pole RCBO 10A, Curve C RCBO, AC Type 30mA RCBO
Technical Specifications
- Number of poles: 4
- Rated voltage: 400 V AC
- Rated current: 10 A
- Rated residual current: 30 mA
- Leakage current type: AC
- Current limiting class: 3
- Rated short-circuit breaking capacity: 6 kA
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Release characteristic: Curve C
- Pollution degree: 2
- Width: 4 modular spacings
- Built-in depth: 44 mm
- Degree of protection: IP20
- Concurrently switches neutral conductor: Yes
- With interlocking device: Yes
- Anti-nuisance tripping version: No
- Dimensions (H x L x W): 85mm x 44mm x 72mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 6000A according to IEC60898-1 standard
- Tripping Curve C for moderate inrush currents
- Sensitivity of 30mA Type AC for AC residual current detection
- 4 poles with protection for all poles including neutral
- Equipped with test button for frequent tripping function checks
- IP20 protection against solid bodies larger than 12.5mm
- Can be supplied by wire prong busbar or Legrand HX3 plug busbar
- Fitted with two DIN rail clamps for easy installation and removal
- Label holder for clear circuit identification
- On/Off indication with red and green backgrounds on handle
- Concurrently switches neutral conductor
- Includes interlocking device
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Photovoltaic system protection
- Overload and residual current protection in electrical circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements to reduce harmful materials
Warranty Information
Legrand products typically come with a 2-year warranty against manufacturing defects. Please refer to official documentation for exact terms.
Available Now
The Legrand RCBO DX³ 6000A 4 Poles 10A Curve C Type AC 30mA is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
