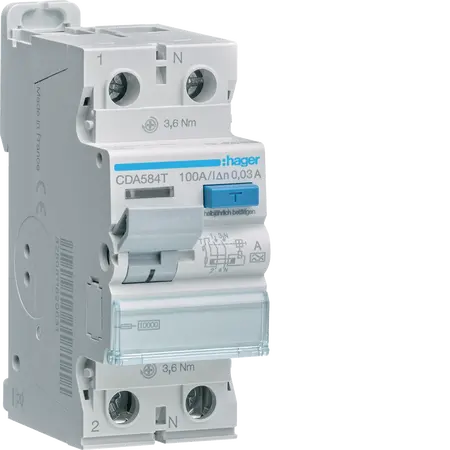

RCCB 1P+N 100A 30mA | DIN Rail | IP20 by Hager
RCCB with 100A rated current and 30mA residual operating current—ideal for residential and commercial circuit protection. Built for safety with DIN rail installation and IP20 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCCB 1P+N 100A 30mA A
Brand: Hager
SKU: CDA584T
Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB
Technical Specifications
- Type of pole: 1P+N
- Rated current: 100 A
- Rated residual operating current: 30 mA
- Breaking and opening capacity: 1.25 kA
- Rated conditional short-circuit current: 10 kA
- Rated operational voltage: 240 V
- Frequency: 50 Hz
- Number of modules: 2
- Residual current type: A
- Total power loss under IN: 13.89 W
- Electric endurance: 10,000 cycles
- Mechanical operations: 20,000
- Dimensions (H x L x W): 85mm x 70mm x 36mm
- Weight: 0.5 kg
Key Features
- Rated current of 100A and residual operating current of 30mA.
- Suitable for DIN Rail installation.
- IP20 ingress protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Designed to improve environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCCB 1P+N 100A 30mA A is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable circuit protection.
