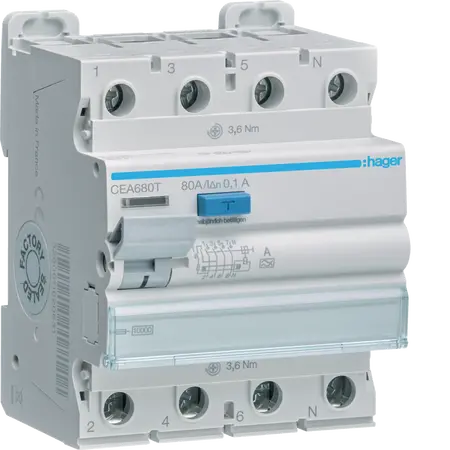

RCCB 3P+N 80A 100mA | High Breaking Capacity | IP20 by Hager
RCCB with 3P+N configuration and 80A rated current—ideal for residential and commercial safety. Built for enhanced protection, with high breaking capacity and IP20 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCCB 3P+N 80A 100mA A
Brand: Hager
SKU: CEA680T
Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB
Technical Specifications
- Type of pole: 3P+N
- Rated current: 80 A
- Rated residual operating current: 100 mA
- Rated operational voltage: 240 - 415 V
- Dielectric strength: 2 kV
- Rated impulse withstand voltage: 4000 V
- Number of modules: 4
- Ingress Protection (IP) class: IP20
- Electric endurance: 10,000 cycles
- Mechanical operations: 20,000
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 1.0 kg
Key Features
- 3P+N configuration for enhanced safety
- Rated current of 80A and residual operating current of 100mA
- High breaking capacity of 1.25 kA
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCCB 3P+N 80A 100mA is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
