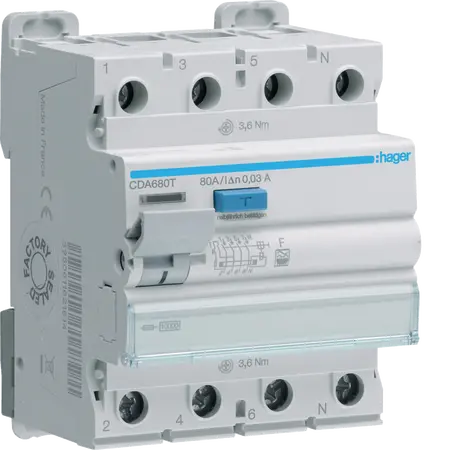

RCCB 3P+N 80A 30mA | High Breaking Capacity | IP20 by Hager
RCCB with 3P+N configuration, 80A rated current, and 30mA residual current—ideal for residential, commercial, and industrial safety. Built for high breaking capacity and IP20 protection, ensuring reliable electrical safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCCB 3P+N 80A 30mA A
Brand: Hager
SKU: CDA680T
Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB
Technical Specifications
- Type of pole: 3P+N
- Rated current: 80 A
- Rated residual operating current: 30 mA
- Breaking capacity: 10 kA
- Rated insulation voltage: 500 V
- Dielectric strength: 2 kV
- Number of modules: 4
- Ingress Protection (IP) class: IP20
- Electric endurance: 10,000 cycles
- Mechanical operations: 20,000
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 1.0 kg
Key Features
- 3P+N configuration for three-phase and neutral protection.
- Rated current of 80A and residual current of 30mA.
- High breaking capacity of 10kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Designed to improve electrical safety and reduce carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCCB 3P+N 80A 30mA is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
