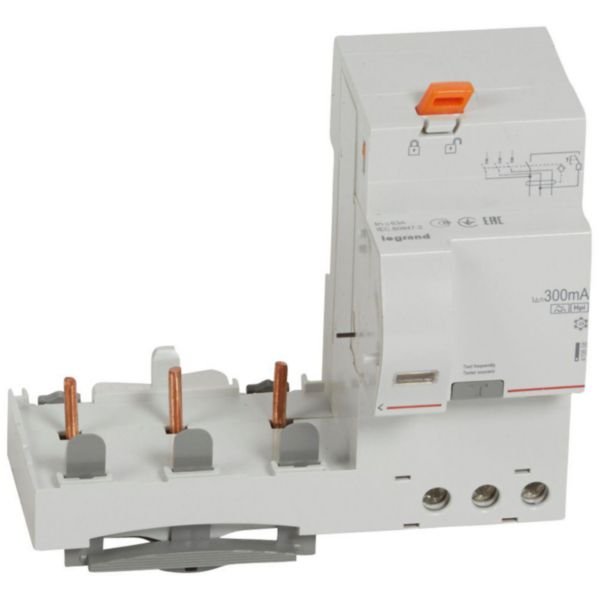

RCD Add-on Module DX3 3 Pole 63A Type F 300 mA | IP20 Rated | Anti-Nuisance Tripping | by Legrand
The RCD Add-on Module DX3 3 Pole 63A Type F 300 mA enhances electrical safety in modular switchboards and power cabinets. Designed for reliable residual current protection, it features an anti-nuisance tripping mechanism and a yellow mechanical indicator for earth leakage faults. Ideal for industrial and commercial applications, this module ensures compliance with AS/NZS 3000 standards and is built for durability with halogen-free materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD Add-on Module DX3 3 Pole 63A Type F 300 mA | IP20 Rated | Anti-Nuisance Tripping | by Legrand
Brand: Legrand
SKU: 410608
Alternatively Known As: Residual Current Device Add-on Module, RCD Module 3 Pole 63A, Type F Earth Leakage Module, DX3 RCD Add-on
Technical Specifications
- Nominal voltage: 250-440 V AC
- Nominal current: 63 A
- Rated fault current: 0.3 A
- Number of poles: 3
- Leakage current type: F
- Frequency: 50 Hz
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Connectable conductor cross section solid-core: 1.5-35 mm²
- Connectable conductor cross section multi-wired: 1.5-25 mm²
- Anti-nuisance tripping version: Yes
- With interlocking device: Yes
- Degree of protection (IP): IP20
- Pollution degree: 3
- Degree of impact strength (IK): IK02
- Terminal marking indication: Yes
- Colour: Grey (RAL 7035)
- Dimensions (H x L x W): 117mm x 78mm x 134mm
- Weight: 0.3 kg
Key Features
- Rated voltage: 400 V~
- Type F RCD for detection of AC, pulsating DC, and high frequency residual currents
- Immunized against unwanted tripping
- Mounts on the right-hand side of 1.5 module per pole DX3 MCBs and remote trip head isolating switches
- Maximum rating of associated device: 63A
- Fitted with a test button for frequent tripping checks
- Yellow mechanical indicator for earth leakage fault display
- Auxiliary screwless terminals for safer and convenient auxiliary circuit connections
- Mobile plastic protection cover allows sealing of terminals after association with MCB
- Halogen free design
- Degree of protection: IP20
- Pollution degree: 3
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Connection type: Screwed terminal, cable
- Mounting method: DIN rail
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to ensure safety and proper operation.
Applications
- Electrical distribution boards requiring residual current protection
- Industrial and commercial switchboards
- Modular earth leakage protection in power cabinets
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen free materials reduce environmental impact
- Complies with substance-restriction requirements
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand RCD Add-on Module DX3 3 Pole 63A Type F 300 mA is available for immediate purchase, ideal for enhancing electrical safety in modular switchboards and power cabinets.
