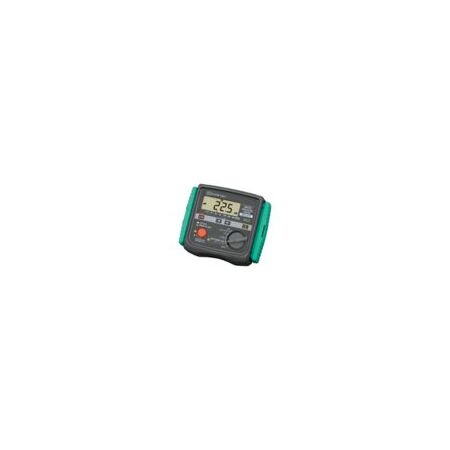

RCD Tester 15/30/50/100/200/500mA | LCD Display & CAT III 300V | 450V AC Measurement by Eaton
RCD tester with LCD display and multiple test ranges (15/30/50/100/200/500mA)—ideal for electrical safety testing in residential, commercial, and industrial settings. Built for qualified electricians, it ensures compliance with safety standards and accurate performance verification of Residual Current Devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD Tester 15/30/50/100/200/500mA | LCD Display & CAT III 300V | 450V AC Measurement by Eaton
Brand: Eaton
SKU: 054100029B
Alternatively Known As: RCD Tester, Residual Current Device Tester, Earth Leakage Tester, Safety Tester
Technical Specifications
- Display type: LCD
- Input frequency range: 50-60 Hz
- Operating temperature range: 0 °C to 40 °C
- Relative humidity: 0-85% non-condensing
- Test ranges: 15/30/50/100/200/500mA
- AC voltage measurement max: 450 V
- Safety category rating: CAT III 300V
- RCD test types: x1/2, x5, x1 RAMP
- Certifications: IEC 60529, IEC 61557-1, IEC 61557-6, IEC 61010-1
- Dimensions (H x L x W): 167mm x 186mm x 89mm
- Weight: 0.965 kg
Key Features
- LCD display for clear readings
- Test ranges: 15/30/50/100/200/500mA
- Measurement capabilities include Trip Time and Trip Current
- RCD test types: x1/2, x5, x1 RAMP
- Safety category rating CAT III 300V
- AC voltage measurement up to 450 V
Professional Installation Requirements
- Professional use by qualified electricians is recommended to ensure accurate testing and compliance with safety standards.
Applications
- Electrical safety testing for residential, commercial, and industrial installations
- Verification of Residual Current Devices (RCDs) performance and safety compliance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Helps ensure electrical safety, reducing risk of electrical faults and potential environmental hazards
- Supports compliance with safety standards that promote sustainable electrical installations
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Kyoritsu 5410 RCD Tester by Eaton is available now for immediate purchase. Ideal for electrical safety testing in residential, commercial, and industrial environments.
