Rear Terminals for DMX³ 1600 Device | 3 Poles Draw-Out Version | Bolt Connection | Halogen Free | @EA of 1 | by Legrand

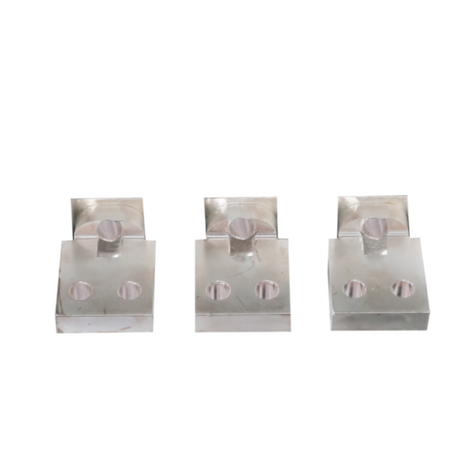

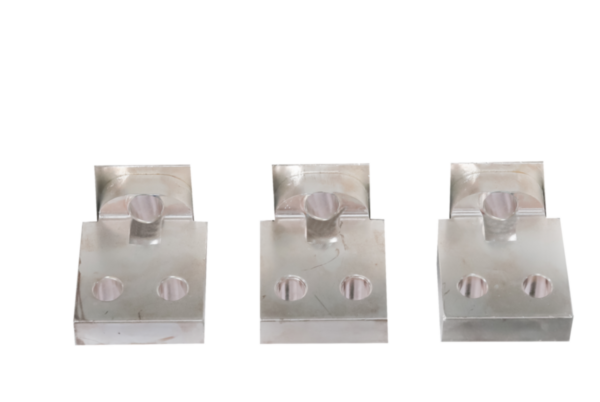

Rear terminals for DMX³ 1600 device with 3 poles in a draw-out version are designed for reliable electrical connections. Featuring a bolt connection type and suitable for flexible or rigid cables with a terminal capacity of 120-1000 mm², these terminals are perfect for electrical switchboards and power cabinets. Built with halogen-free materials, they ensure safety and environmental compliance, making them ideal for industrial and commercial electrical distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rear Terminals for DMX³ 1600 Device | 3 Poles Draw-Out Version | Bolt Connection | Halogen Free | @EA of 1 | by Legrand
Brand: Legrand
SKU: 028147
Alternatively Known As: DMX3 1600A Rear Terminal 3P, Rear Terminal for DMX3 1600 Circuit Breaker, Legrand DMX3 1600 Rear Connector
Technical Specifications
- Number of poles: 3
- Voltage type: AC
- Frequency: 50-60 Hz
- Terminal marking indication: No
- Position of connection for main current circuit: Back side
- Terminals capacity: 120-1000 mm²
- Cable nature for connection: Flexible or rigid
- Operating temperature: -5 to 70 °C
- Storage temperature: -25 to 85 °C
- Degree of impact strength (IK): Not applicable
- Electric supplying direction: By the rear of the product
- Integrated earth fault protection: No
- Motor drive integrated: No
- Motor drive optional: No
- Complete device with protection unit: No
- Dimensions (H x L x W): 15mm x 63mm x 50mm
- Weight: 1.5 kg
Key Features
- Rear terminals for DMX³ 1600 device with 3 poles in draw-out version
- Bolt connection type for main circuit electrical connection
- Suitable for flexible or rigid cables with terminal capacity of 120-1000 mm²
- Halogen free construction for safety and environmental compliance
- Operating temperature range from -5 to 70 °C
- Storage temperature range from -25 to 85 °C
- Metallic color with no integrated earth fault protection or motor drive
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical switchboards and power cabinets
- Circuit breaker and moulded case switch installations
- Industrial and commercial electrical distribution systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact and improve safety in case of fire
Warranty Information
Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.
Available Now
Available for immediate purchase, ideal for use in electrical switchboards and power cabinet applications.
