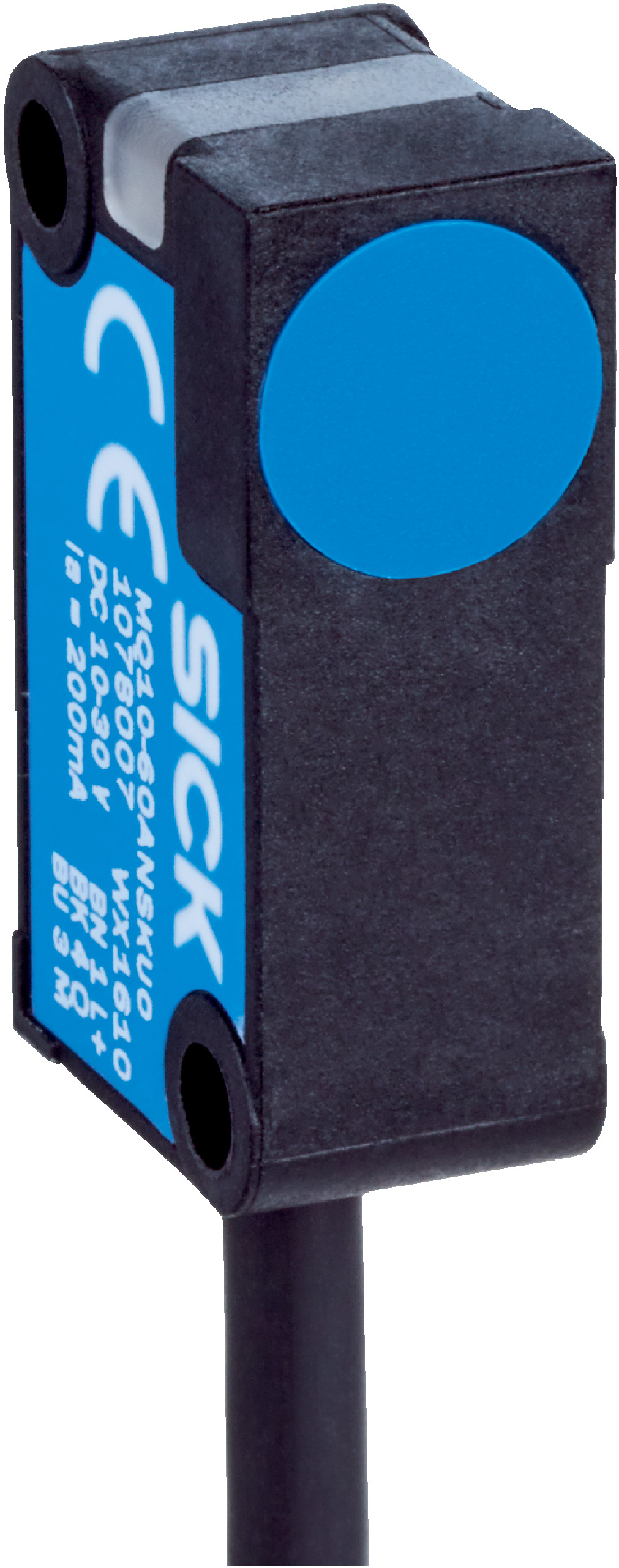

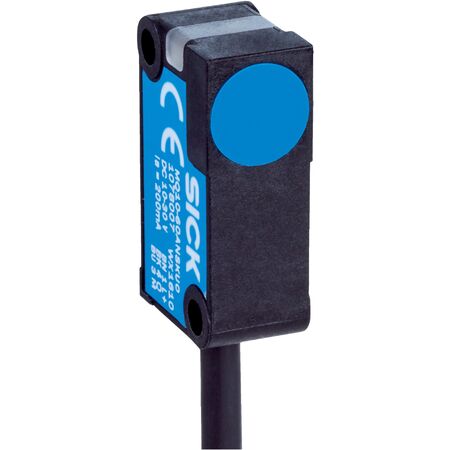

Rectangular Proximity Sensor MQ10-60APSKQDS02 | IP67 Rated | 60mm Sensing Range | 1000 Hz Switching Frequency | by SICK
The Rectangular Proximity Sensor MQ10-60APSKQDS02 is designed for precise object detection in industrial automation, featuring a sensing range of up to 60 mm and a high switching frequency of 1000 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing lines and safety control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 5 mA
- Switching output: PNP, normally open
- Switching frequency: 1000 Hz
- Sensing range: 0 to 60 mm
- Safe sensing range: 48.6 mm
- Voltage drop: ≤ 1.5 V
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ±10%
- Enclosure rating: IP67
- Cable: PUR material, 1 m length with M12 3-pin connector
- Shock resistance: 30 g, 11 ms
- Operating temperature: -25°C to +75°C
- Housing and sensing face material: Plastic, VISTAL®
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 28mm x 16mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with compact dimensions
- Sensing range up to 60 mm with safe sensing range of 48.6 mm
- High switching frequency of 1000 Hz for fast response
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant for harsh environments
- Cable with M12 3-pin connector included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 5 mA supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MQ10-60APSKQDS02 proximity sensor is available for immediate purchase, ideal for industrial automation and control applications.
