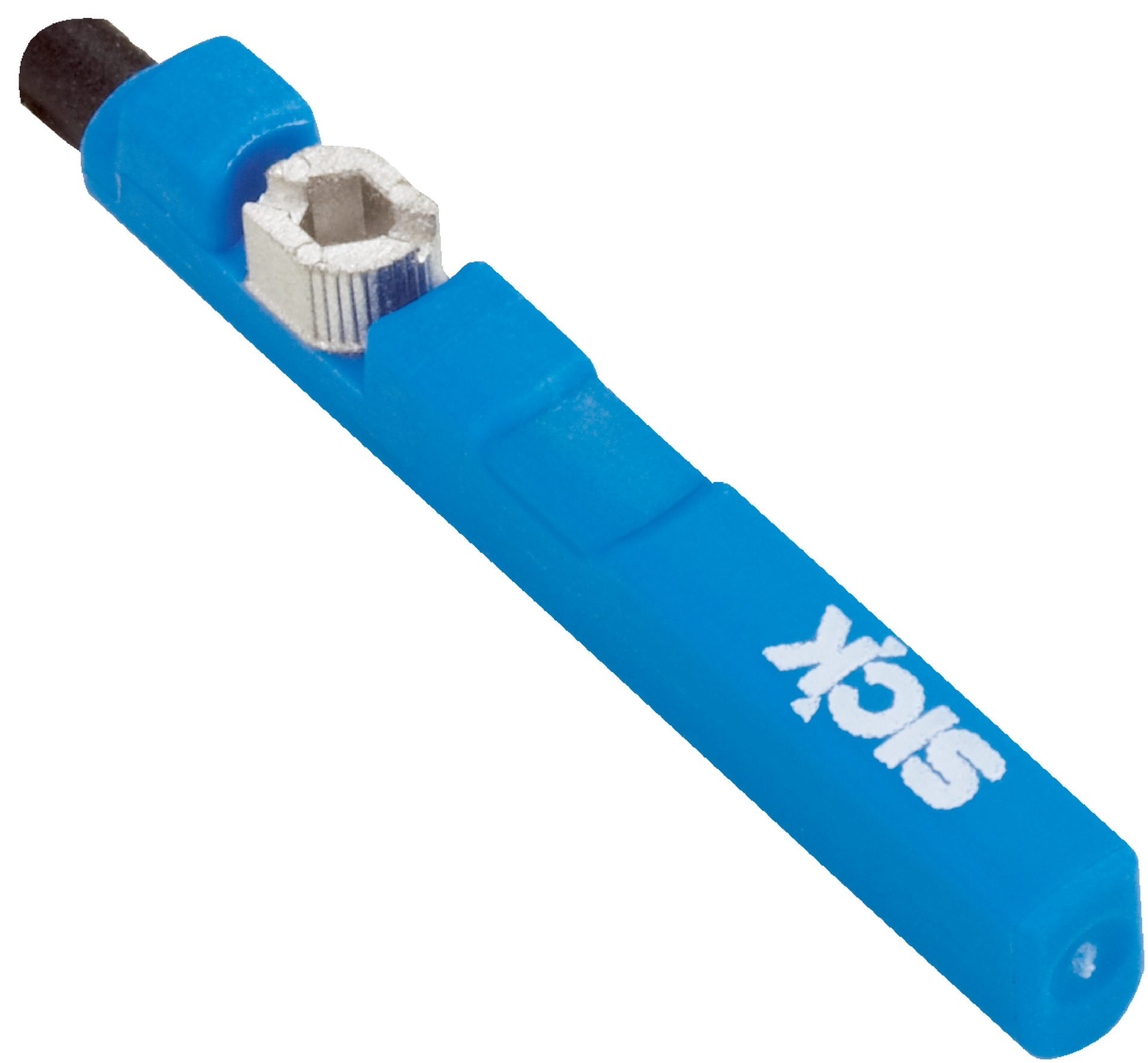

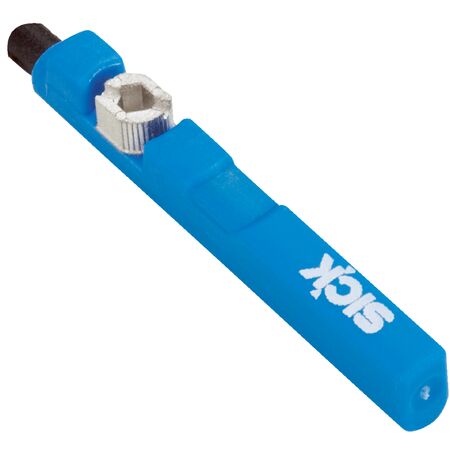

Reed Switch Sensor RZC1-04ZRS-KQ0 | C-Slot Cylinder Type | IP68 Rated | 500 Hz Switching Frequency | by SICK
The Reed Switch Sensor RZC1-04ZRS-KQ0 is designed for precise cylinder position sensing in industrial automation. With a C-slot cylinder type and an IP68 enclosure rating, it ensures reliable performance in harsh environments. Featuring a high switching frequency of 500 Hz and low power consumption, this sensor is perfect for applications requiring durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Switching output: Reed, normally open (NO)
- Switching frequency: 500 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 5 V to 30 V AC/DC
- Power consumption: 5 mA without load
- Voltage drop: < 0.5 V
- Continuous current Ia: ≤ 500 mA
- Switching capacity: ≤ 10 W
- Protection class: III
- Overrun distance (typical): 7 mm
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M12 3-pin connector, 0.3 m
- Cable diameter: Ø 2.2 mm
- Material: Housing - strengthened plastic (PA), Cable - PUR
- Dimensions (H x L x W): 26mm x 26mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2
- Reed switching output with normally open (NO) function
- High switching frequency up to 500 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating IP68 for dust and water protection
- Supply voltage range from 5 V to 30 V AC/DC
- Low power consumption of 5 mA without load
- Status indicator LED included
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M12 3-pin connector, 0.3 m length
- Housing made of strengthened plastic (PA) and PUR cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and industrial sensor integration to ensure proper function and safety.
Applications
- Industrial automation for cylinder position sensing
- Use with SMC rail CDQ2 and ECDQ2 cylinders
- Suitable for harsh environments requiring IP68 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP68 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RZC1-04ZRS-KQ0 reed switch sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
