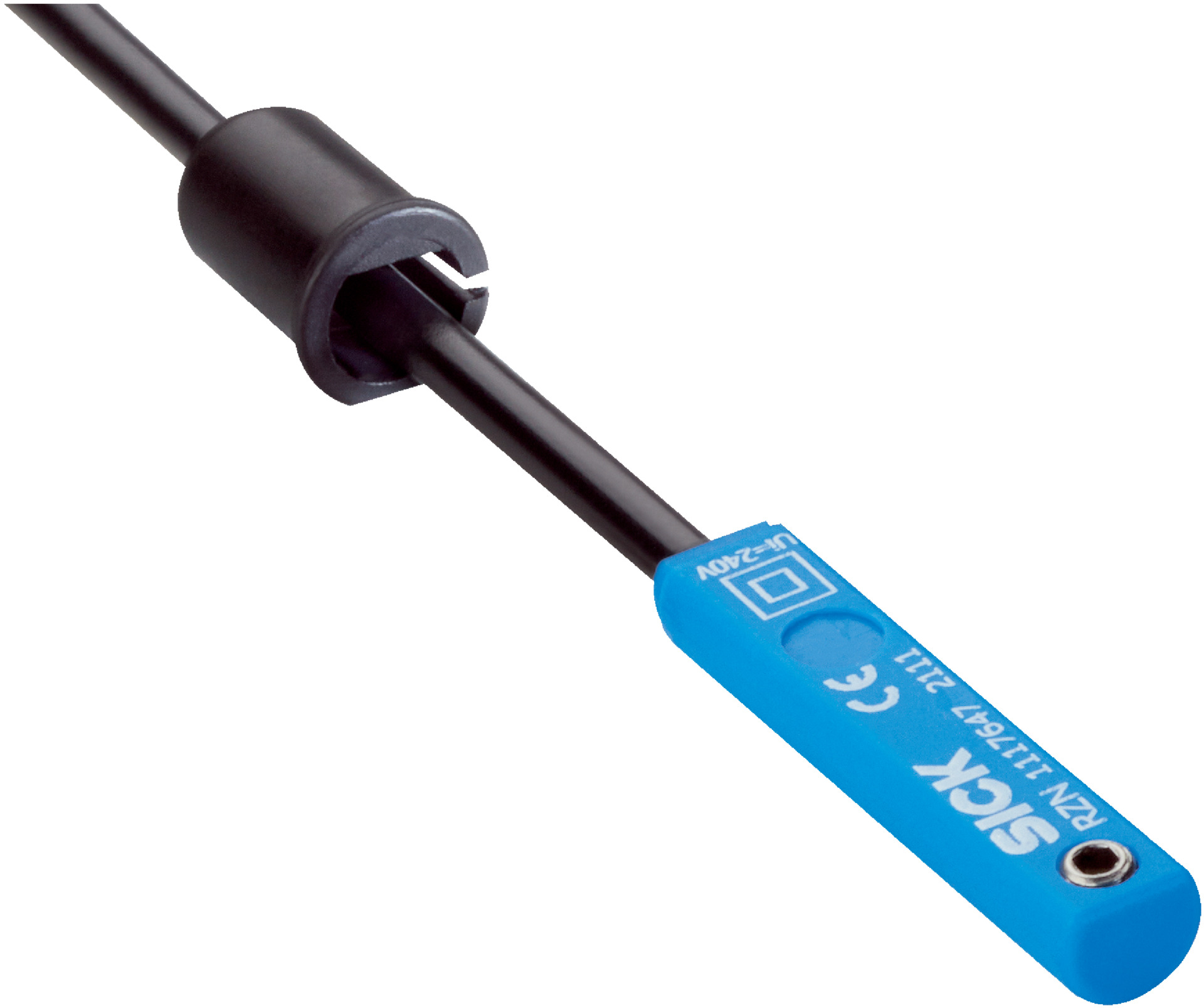

Reed Switch Sensor RZN-03ZWS-KWD | IP67 Rated | 400 Hz Switching Frequency | LED Status Indicator | by SICK
The Reed Switch Sensor RZN-03ZWS-KWD is designed for precise position sensing in industrial automation and pneumatic cylinder monitoring. With an IP67 rated enclosure, it offers robust protection against dust and water, while the high switching frequency of 400 Hz ensures reliable performance. Ideal for machine safety and control systems, this sensor features a status indicator LED for operational feedback, making it a perfect choice for professionals seeking efficiency and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: IMI Norgren slot
- Switching output: Reed, Normally Open (NO)
- Switching frequency: 400 Hz
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP67
- Supply voltage: 5 V AC/DC to 240 V AC/DC
- Rated insulation voltage Ui: 240 V
- Rated impulse withstand voltage Uimp: 4 kV
- Voltage drop: ≤ 3.5 V
- Continuous current Ia: ≤ 100 mA
- Switching capacity: ≤ 10 W
- Protection class: II
- Response sensitivity: 3 mT
- Overrun distance: 10 mm
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –40 °C to +80 °C
- Shock and vibration resistance: 50 g, 11 ms / 10-55 Hz, 1 mm
- Connection type: Cable, 2-wire, stripped, drag chain use, 10 m
- Cable diameter: Ø 3 mm
- Material: Plastic housing, PVC cable
- Dimensions (H x L x W): 10mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- IMI Norgren slot cylinder type compatibility
- Reed switching output with normally open function
- High switching frequency up to 400 Hz
- Wide supply voltage range from 5 V AC/DC to 240 V AC/DC
- IP67 rated enclosure for dust and water protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (50 g, 11 ms / 10-55 Hz, 1 mm)
- Cable connection with 10 m length and axial outlet
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Pneumatic cylinder monitoring
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient switching technology
- Durable design reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK RZN-03ZWS-KWD Reed Switch Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder monitoring applications.
