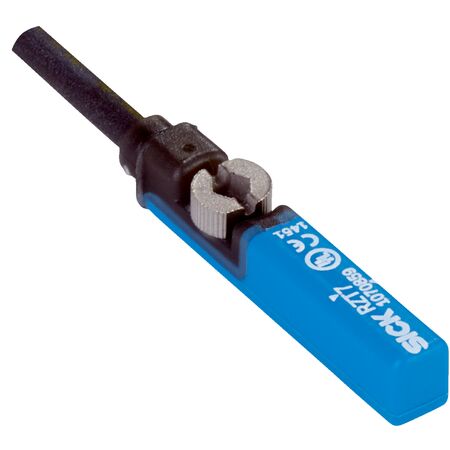

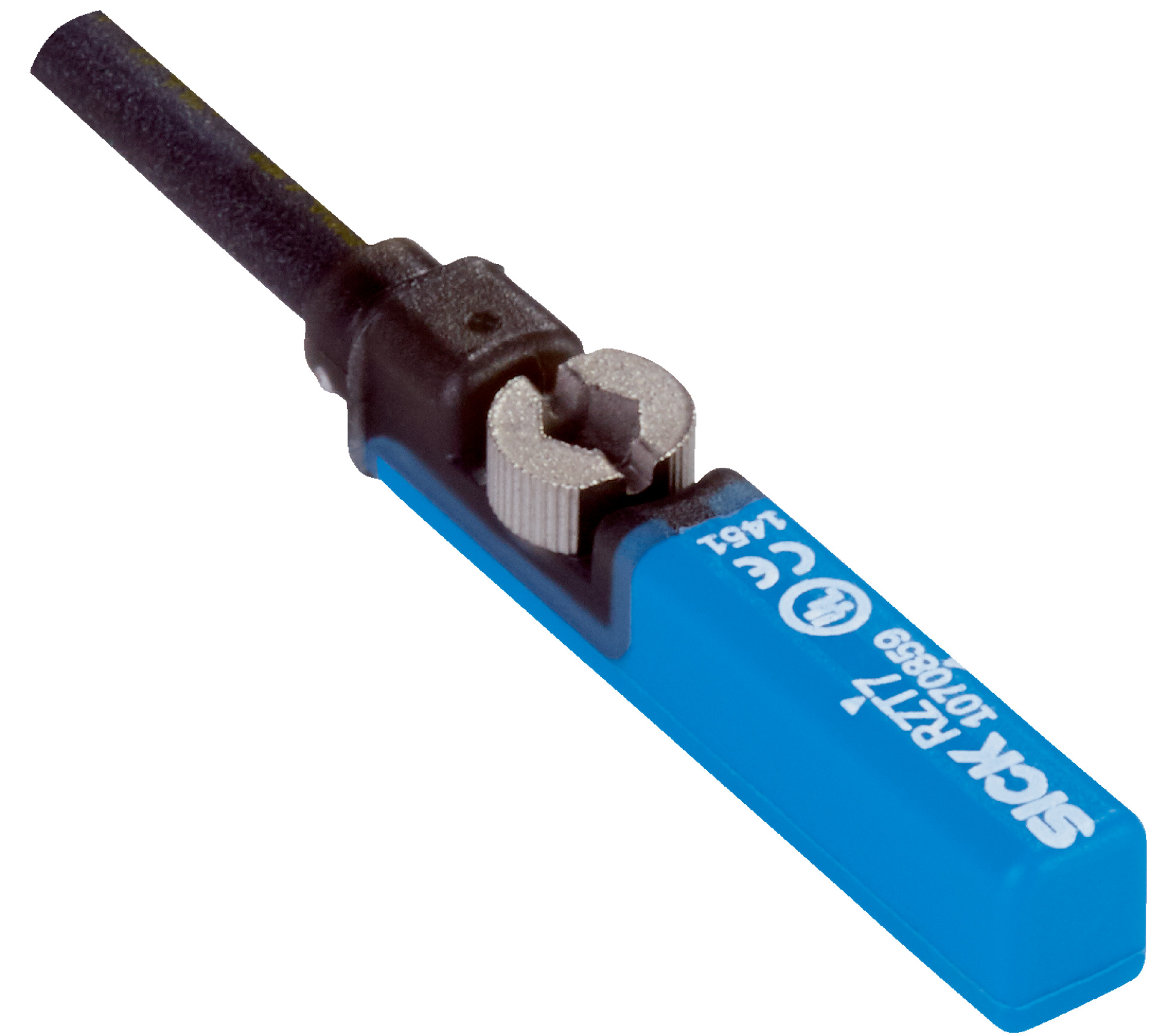

Reed Switch Sensor RZT7-03ZUS-KU0 T-Slot Cylinder Type IP65 & IP67 Rated Variant-2 SICK
The Reed Switch Sensor RZT7-03ZUS-KU0 is designed for precise position sensing in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: T-slot
- Compatible cylinder types: Profile, Tie rod, Round body, Dovetail groove, SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 29.5 mm
- Switching output: Reed
- Switching frequency: 400 Hz
- Output function: Normally Open (NO)
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP65 and IP67
- Supply voltage: 5 V AC/DC to 30 V AC/DC
- Voltage drop: ≤ 3.5 V
- Continuous current Ia: ≤ 100 mA
- Switching capacity: ≤ 6 W
- Protection class: III
- Response sensitivity (typical): 3 mT
- Overrun distance (typical): 10 mm
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 2-wire, stripped, drag chain use, 2 m length
- Cable diameter: Ø 2.9 mm
- Bending radius: Fixed installation > 3 x cable diameter, Flexible use > 10 x cable diameter
- Torsion force: ± 270° / 10 cm
- Torsion cycles: > 2,000,000
- Drag chain cycles: > 2,000,000
- Cable outlet: Axial
- Material housing: Plastic, Grilamid LVX-65H SST
- Cable material: PUR
- Dimensions (H x L x W): 10mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with multiple cylinder adapters
- Reed switching output with normally open (NO) function
- High switching frequency of 400 Hz
- Wide supply voltage range from 5 V to 30 V AC/DC
- IP65 and IP67 rated enclosure for dust and water protection
- Status indicator LED for operational feedback
- Robust mechanical design with shock and vibration resistance
- Cable connection with 2-wire stripped cable, suitable for drag chain use
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper operation and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP65/IP67 protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage from 5 V to 30 V AC/DC
- Durable materials and long service life reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RZT7-03ZUS-KU0 Reed Switch Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
