Trade Discount 25%
Relay Interface Module 6A 1 Changeover | 12V AC Coil | LED Status | DIN Rail by NHP
Relay interface module with 6A nominal current and 1 changeover contact—ideal for industrial automation and commercial building management. Built for reliable switching, with LED status indication and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

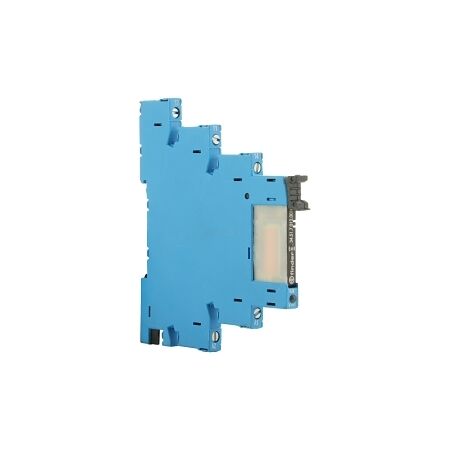

Product Name/Title: Finder 38 Series Relay Interface Modules Relay 6A 1 Changeover 12V AC Coil
Brand: NHP
SKU: 385112VDC
Alternatively Known As: Relay Module, Interface Relay, Switching Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Rated Switching Power at AC-1: 1500 VA
- Rated Switching Power at AC-15 (230 V): 300 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Breaking Capacity at DC-1 (110 V): 0.2 A
- Control Supply Voltage (US) at DC: 12 V
- Type of Electric Connection: Screw connection
- Degree of Protection: IP20
- Dimensions (H x L x W): 88mm x 72mm x 62mm
- Weight: 0.5 kg
Key Features
- 6A nominal current with 1 changeover contact.
- LED indication for operational status.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: Building management systems, HVAC control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 38 Series Relay Interface Module is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
