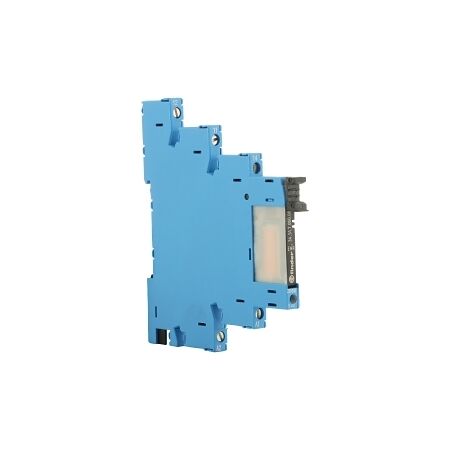

Relay Interface Module 6A 1 Changeover | 240V AC/DC | LED Indicator | DIN Rail by NHP
Relay interface module with 6A current and 1 changeover contact—ideal for industrial automation and commercial building management. Built for reliable switching, with LED status indication and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 38 Series Relay Interface Modules Relay 6A 1 Changeover 240V AC DC Coil
Brand: NHP
SKU: 3851240VACDC
Alternatively Known As: Relay Module, Switching Relay, Interface Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Number of Contacts: 1 Changeover Contact
- Rated Switching Power at AC-1: 1500 VA
- Rated Switching Power at AC-15 (230 V): 300 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Control Supply Voltage (AC 50 Hz): 240 V
- Degree of Protection: IP20
- Material of Contact: Silver Nickel
- Material of Contact Insert: Thermoplastic
- Dimensions (H x L x W): 884mm x 721mm x 62mm
- Weight: 0.5 kg
Key Features
- Mono stable drive switching attitude.
- LED indication for operational status.
- Screw connection for reliable electrical connection.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: Building management systems, HVAC controls
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 38 Series Relay Interface Module is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching solutions.
