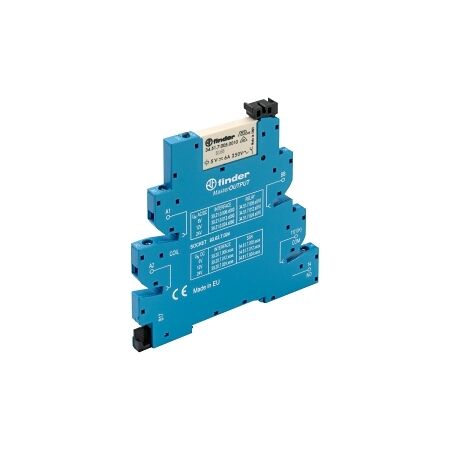

Relay Interface Module 6A | 110V AC/DC Coil | LED Status | DIN Rail by NHP

BRAND: NHP
SKU: 3921125VACDC
$46.50 List price: $61.70
+ −
30 Days Return Delivery Options
Relay interface module with 6A nominal current and 110V AC/DC coil—ideal for industrial automation and commercial building management. Built for reliable switching, with LED status indication and DIN rail mounting.

Product Name/Title: Finder 39 Series Master Output Relay Interface Module 6A 110V AC DC Coil 1 NO Contact

Brand: NHP

SKU: 3921125VACDC

Alternatively Known As: Relay Interface Module, Output Relay Module, Switching Relay

Technical Specifications
  • Nominal Current: 6 A
  • Nominal Voltage AC: 250 V
  • Max Rated Operation Voltage AC: 400 V
  • Rated Switching Power at AC 1: 1500 VA
  • Rated Switching Power at AC 15 230 V: 300 VA
  • Breaking Capacity at DC 1 30 V: 6 A
  • Breaking Capacity at DC 1 110 V: 0.2 A
  • Voltage Type for Actuating: AC/DC
  • Control Supply Voltage at AC 50 Hz: 110 V
  • Electrical Life at Un in Service Cycles: 60000 cycles
  • Mechanical Life Service Cycles: 10000000 cycles
  • Degree of Protection: IP20
  • Operating Temperature: -40-70 °C
  • Dimensions (H x L x W): 87mm x 90.7mm x 62mm
  • Weight: 0.5 kg
Key Features
  • 6A nominal current with 110V AC/DC coil.
  • Single NO contact for reliable switching.
  • LED indication for operational status.
  • Suitable for DIN rail mounting.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, control panels
  • Commercial: Building management systems, HVAC control
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Energy-efficient design reduces power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Finder 39 Series Master Output Relay Interface Module is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

3921125VACDC-AU-Interface-Relay-Datasheet.pdf (3921125VACDC-AU-Interface-Relay-Datasheet.pdf, 477 Kb) [Download]
