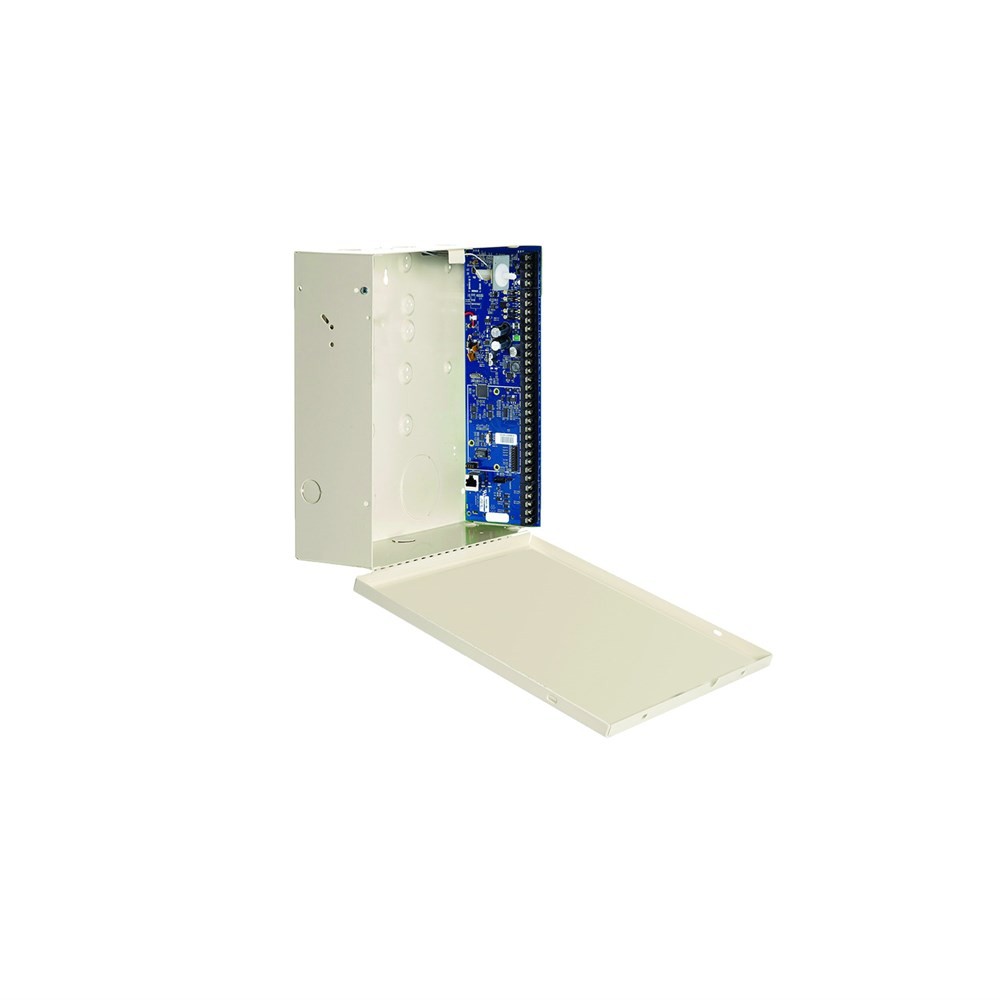

RELIANCE XR PCB Board | Scalable Hybrid Intrusion Panel | Onboard Ethernet & 4G Support | by Reliance XR
The RELIANCE XR PCB Board is a scalable hybrid intrusion panel designed for both residential and commercial security systems. With onboard Ethernet for secure UltraSync Cloud connection and optional 4G support, it offers flexibility for upgrading legacy systems. Ideal for professional installers, this panel supports up to 24 system inputs and features a built-in web server for easy control and programming.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RELIANCE XR PCB Board | Scalable Hybrid Intrusion Panel | Onboard Ethernet & 4G Support | by Reliance XR
Brand: Reliance XR
SKU: NXX-4-W-BO-AU
Alternatively Known As: Reliance XR Control Panel PCB, Aritech Reliance XR Board, UltraSync XR PCB Board
Technical Specifications
- Max system inputs: 24
- Onboard inputs: 4 (8 zone doubled)
- Onboard outputs: 3 (Output collector type; Output 1 & 2 preprogrammed for Strobe and Piezo)
- Dedicated external siren support: Yes
- Wireless receiver: Yes - Onboard
- Max wireless inputs: 16 (Inclusive of max system inputs)
- Wireless technology: ITI (Legacy) + 80Plus
- User capacity: 40
- Dedicated smoke terminal: No (Available on XRpro)
- Ethernet: Yes - Onboard
- App support: UltraSync+ (User operation + Installer programming)
- 4G module: Optional - NXX-4G-WFSIM-AU (Requires control room registration)
- Reliance XR bus: 4 Wire RS485 (Recommended cables: Belden 7201A, 3107A, 9842 or equivalent)
- NX bus (legacy) compatibility: Yes - Limited functionality
- Enclosure compatibility: NX-002 (Retrofit into Reliance NX-4 or Reliance R8 enclosure)
- Dimensions (H x L x W): 250mm x 50mm x 300mm
- Weight: 1.5 kg
Key Features
- Scalable and flexible hybrid intrusion panel
- Supports retrofit installation for existing NX or Reliance panels
- Onboard Ethernet port for secure UltraSync Cloud connection
- Optional 4G & WiFi router plug-on module for cellular connectivity
- Supports 4-wire XR bus and 3-wire legacy bus protocols
- Built-in web server for control, user administration, and programming
- Auto enroll feature for XR series expanders
- Zone-doubling support
- Onboard legacy & LoNa 433 MHz RF receiver for accessories
- Firmware upgradeable in the field
Professional Installation Requirements
- Professional installation by a qualified security system installer is required to ensure proper integration and compliance with local regulations.
Applications
- Residential security systems
- Small to large commercial security installations
- Upgrading legacy intrusion alarm systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables remote monitoring reducing the need for physical service visits
- Supports firmware upgrades to extend product life and reduce electronic waste
Warranty Information
2 years warranty from date of purchase covering manufacturing defects.
Available Now
The RELIANCE XR PCB BOARD ONLY 2YR by Reliance XR is available for immediate purchase, ideal for upgrading or installing scalable intrusion alarm systems in residential and commercial properties.
