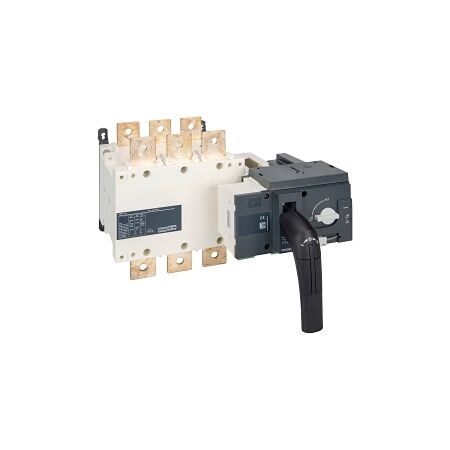

Remote Transfer Switch 3 Pole 315A | 1000V Rated | IP20 Protection by NHP
Remote transfer switch with 3 pole design and 315A current—ideal for industrial and commercial power distribution. Built for reliability, with 1000V rating and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Operating Voltage: 1000 V
- Max Rated Operation Voltage: 1000 V
- Rated Permanent Current: 315 A
- Rated Control Supply Voltage: 400-690 V
- Rated Operation Power: 160 kW
- Rated Short Time Withstand Current: 8 kA
- Rated Insulation Voltage: 1000 V
- Switching Power at 400 V: 2520 kW
- Conditioned Rated Short Circuit Current: 50 kA
- Number of Poles: 3
- Interlockable: Yes
- Padlock Locking: Yes
- Dimensions (H x L x W): 154mm x 244mm x 304mm
- Weight: 9.04 kg
Key Features
- 3 Pole design with a rated permanent current of 315 A.
- Rated operating voltage up to 1000 V.
- IP20 protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Data centers, critical power applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for efficient power management and reliability.
Warranty Information
Standard warranty applies.
Available Now
The Socomec ATyS Remote Transfer Switch is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
