Residual Current Breaker RCBO 10kA 3 Pole 16A | D Curve 30mA | Longbody by NHP
Residual current breaker with 10kA short circuit capacity and 30mA residual current rating—ideal for residential and commercial safety. Built for high inrush current applications, with easy DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

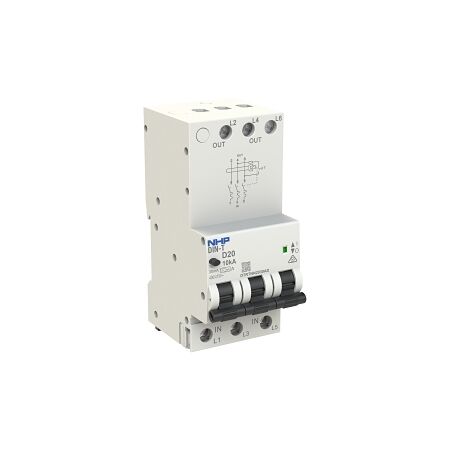

Product Name/Title: NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole 16A D Curve 30mA Type A (Longbody)
Brand: NHP
SKU: DTRTNN1630AD
Alternatively Known As: Residual Current Breaker, RCBO, Earth Leakage Circuit Breaker
Technical Specifications
- Rated Current: 16 A
- Rated Voltage: 415 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Voltage Type: AC
- Trip Curve: D
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 206 V
- Max Operating Voltage: 457 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles: 3
- Degree of Protection: IP40
- Mechanical Life: 20000 cycles
- Operating Temperature: -5 to 55 °C
- Dimensions (H x L x W): 117.5mm x 77.1mm x 54mm
- Weight: 0.49 kg
Key Features
- 10 kA short circuit breaking capacity
- 30 mA residual current rating for enhanced safety
- D curve for high inrush current applications
- DIN rail mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole 16A D Curve 30mA Type A (Longbody) is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
