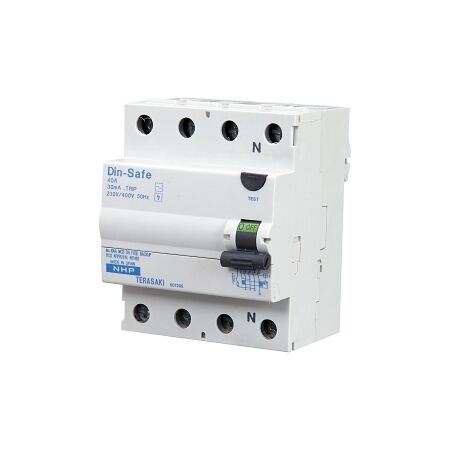

Residual Current Circuit Breaker 3P+N | 40A 30mA | DIN Rail Mount by NHP
Residual current circuit breaker with 3 pole plus neutral design, 40A rated current, and 30mA leakage—ideal for residential and commercial safety. Built for easy DIN rail installation, enhancing electrical protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP DIN-T Residual Current Circuit Breaker RCCB 3Pole plus Neutral 40A 30mA Type F AEG Brand FPF
Brand: NHP
SKU: DSRCD44030F
Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD, Type F RCCB
Technical Specifications
- Number of Poles: 4
- Voltage Type: AC
- Frequency: 50/60 Hz
- Rated Current: 40 A
- Leakage Current Type: F
- Rated Leakage Current: 30 mA
- Min Service Voltage: 205 V
- Max Rated Operation Voltage: 455 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 8 kV
- Rated Fault Current: 10000 A
- Short Time Delayed Tripping: Yes
- Electrical Life: 10000 cycles
- Rated Voltage: 400 V
- Short Circuit Breaking Capacity: 1 kA
- Surge Current Capacity: 4 kA
- Degree of Protection: IP20
- Connectable Conductor Cross Section: 50-50 mm² (solid core), 0-25 mm² (multi-wired)
- Operating Temperature: 55 °C
- Ambient Temperature: -25-55 °C
- Storage Temperature: 70 °C
- Pollution Degree: 2
- Dimensions (H x L x W): 86mm x 76mm x 72mm
- Weight: 0.37 kg
Key Features
- 3 Pole plus Neutral design for enhanced safety.
- Rated current of 40A and leakage current of 30mA.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed to enhance electrical safety and reduce the risk of electrical fires.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The NHP DIN-T Residual Current Circuit Breaker RCCB 3Pole plus Neutral 40A 30mA Type F is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
