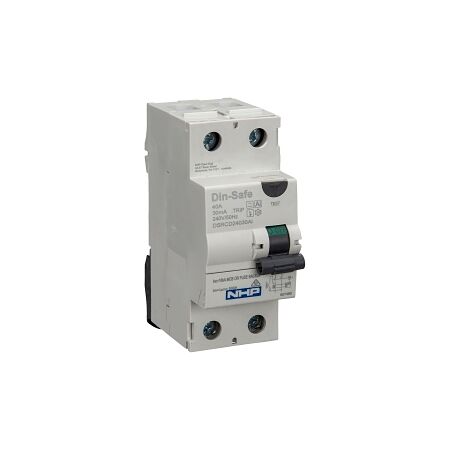

NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole plus Neutral 63A 30mA Type AI

Residual Current Circuit Breaker 63A 30mA | 1P+N | DIN Rail by NHP

BRAND: NHP

SKU: DSRCD26330AI

$528.40 List price: $701.70

+ −

30 Days Return Delivery Options

Residual current circuit breaker with 63A rated current and 30mA leakage protection—ideal for residential and commercial safety. Built for easy installation with DIN rail mounting, ensuring reliable electrical safety.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole plus Neutral 63A 30mA Type AI

Brand: NHP

SKU: DSRCD26330AI

Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD

Technical Specifications

Number of Poles: 2
Voltage Type: AC
Frequency: 50/60 Hz
Rated Current: 63 A
Rated Leakage Current: 30 mA
Min Service Voltage: 117 V
Max Rated Operation Voltage: 265 V
Rated Insulation Voltage: 440 V
Rated Impulse Withstand Voltage: 9 kV
Rated Fault Current: 10000 A
Electrical Life: 10000 cycles
Degree of Protection: IP20
Connectable Conductor Cross Section: 50-50 mm²
Mechanical Life: 20000 cycles
Operating Temperature: 55 °C
Ambient Temperature: -25-55 °C
Storage Temperature: 70 °C
Pollution Degree: 2
Dimensions (H x L x W): 86mm x 76mm x 36mm
Weight: 0.25 kg

Key Features

1 Pole plus Neutral design for effective leakage current protection.
Rated current of 63A and leakage current of 30mA.
DIN rail mounting for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring residual current protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole plus Neutral 63A 30mA Type AI is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable electrical safety.

DSRCD26330AI-AU-RCCB-1P-and-N-36mm-Datasheet.pdf (DSRCD26330AI-AU-RCCB-1P-and-N-36mm-Datasheet.pdf, 266 Kb) [Download]
