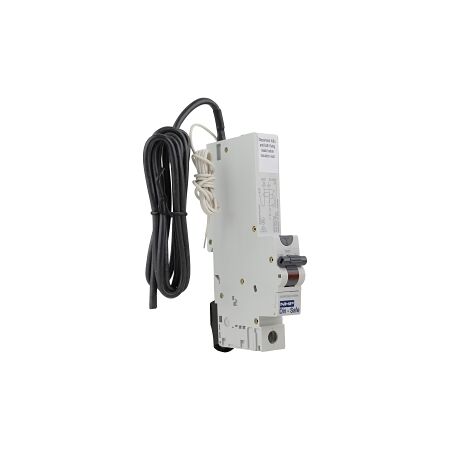

Residual Current Device 25A 10kA Short Circuit Long Body Design NHP

BRAND: NHP
SKU: DSRCBH2530A
$123.50 List price: $153.90
+ −
30 Days Return Electricians Unlock Trade Access
Residual current device with 25A rated current and 10kA short circuit capacity—ideal for residential and commercial safety.
Technical Specifications
  • Rated Current: 25 A
  • Rated Voltage: 240 V
  • Rated Leakage Current: 30 mA
  • Frequency: 50/60 Hz
  • Rated Short Circuit Breaking Capacity: 10 kA
  • Voltage Type: AC
  • Trip Curve: C
  • Rated Impulse Withstand Voltage: 6 kV
  • Tripping Time: 40 ms
  • Min Service Voltage: 195 V
  • Max Operating Voltage: 265 V
  • Rated Insulation Voltage: 500 V
  • Degree of Protection: IP20
  • Mounting Method: DIN rail (top hat rail) 35 mm
  • Dimensions (H x L x W): 125mm x 76mm x 18mm
  • Weight: 0.35 kg
Key Features
  • Long body design for easy installation on DIN rail.
  • Rated current of 25A and leakage current of 30mA.
  • 10kA short circuit breaking capacity.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
  • Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DSRCBH2530A-AU-RCBO-10kA-1P-long-body-18mm-with-Pigtail-Datasheet.pdf (DSRCBH2530A-AU-RCBO-10kA-1P-long-body-18mm-with-Pigtail-Datasheet.pdf, 278 Kb) [Download]
