Home/Electrical/Switchgear/Residual Current Devices/Residual Current Device RCCB 3 Pole | 80A 100mA | Type A by NHP

Trade Discount 25%

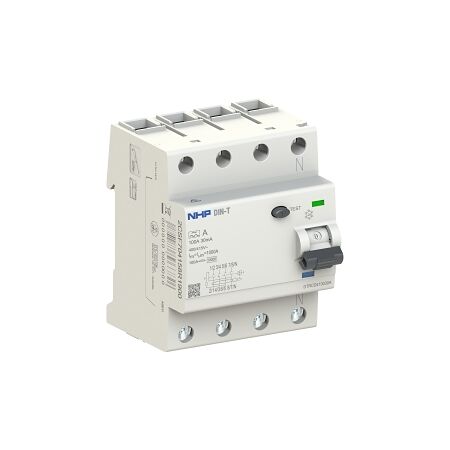

NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 80A 100mA Type A

Residual Current Device RCCB 3 Pole | 80A 100mA | Type A by NHP

BRAND: NHP

SKU: DTRCD480100A

$859.60 List price: $1,141.40

+ −

30 Days Return Delivery Options

Residual current device with 3 pole and switched neutral design, rated at 80A and 100mA—ideal for residential and commercial safety. Built for enhanced protection, with DIN rail mounting for easy installation.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 80A 100mA Type A

Brand: NHP

SKU: DTRCD480100A

Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD

Technical Specifications

Number of Poles: 4
Voltage Type: AC
Frequency: 50/60 Hz
Rated Current: 80 A
Leakage Current Type: A
Rated Leakage Current: 100 mA
Min Service Voltage: 254 V
Max Rated Operation Voltage: 456 V
Rated Insulation Voltage: 500 V
Rated Impulse Withstand Voltage: 4 kV
Rated Fault Current: 10000 A
Degree of Protection: IP40
Mounting Method: DIN rail
Operating Temperature: 70 °C
Ambient Temperature During Operating: -25-70 °C
Pollution Degree: 2
Dimensions (H x L x W): 85mm x 75mm x 70mm
Weight: 0.38 kg

Key Features

3 Pole and Switched Neutral design for enhanced safety.
Rated current of 80A and leakage current of 100mA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 80A 100mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

DTRCD480100A-AU-RCCB-4P-SN-100mA-Type-A-Datasheet.pdf (DTRCD480100A-AU-RCCB-4P-SN-100mA-Type-A-Datasheet.pdf, 232 Kb) [Download]
