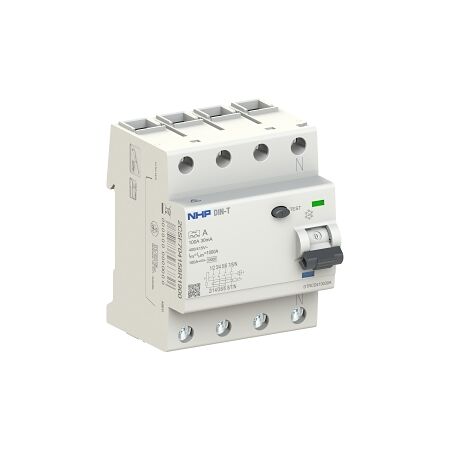

NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 100A 500mA Type A

Residual Current Device RCCB 4 Pole | 100A 500mA | DIN Rail Mount by NHP

BRAND: NHP

SKU: DTRCD4100500A

$1,024.60 List price: $1,360.60

+ −

30 Days Return Delivery Options

Residual current device RCCB with 4 poles and switched neutral, rated at 100A and 500mA—ideal for residential and commercial safety. Built for enhanced protection, with easy DIN rail mounting.

Description
Attachments

Product Name/Title: NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 100A 500mA Type A

Brand: NHP

SKU: DTRCD4100500A

Alternatively Known As: RCCB, Residual Current Circuit Breaker, RCD, Type A RCCB

Technical Specifications

Number of Poles: 4
Voltage Type: AC
Frequency: 50/60 Hz
Rated Current: 100 A
Leakage Current Type: A
Rated Leakage Current: 500 mA
Min Service Voltage: 254 V
Max Rated Operation Voltage: 456 V
Rated Insulation Voltage: 500 V
Rated Impulse Withstand Voltage: 4 kV
Rated Fault Current: 10000 A
Degree of Protection: IP40
Operating Temperature: 70 °C
Ambient Temperature During Operating: -25-70 °C
Pollution Degree: 2
Dimensions (H x L x W): 85mm x 75mm x 70mm
Weight: 0.38 kg

Key Features

4 poles with switched neutral for enhanced safety.
Rated current of 100A and leakage current of 500mA.
DIN rail mounting for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Enhances electrical safety, reducing the risk of electrical fires and accidents.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 100A 500mA Type A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

Non-Returnable & Non-Cancellable

DTRCD4100500A-AU-RCCB-4P-SN-500mA-Type-A-Datasheet.pdf (DTRCD4100500A-AU-RCCB-4P-SN-500mA-Type-A-Datasheet.pdf, 242 Kb) [Download]
