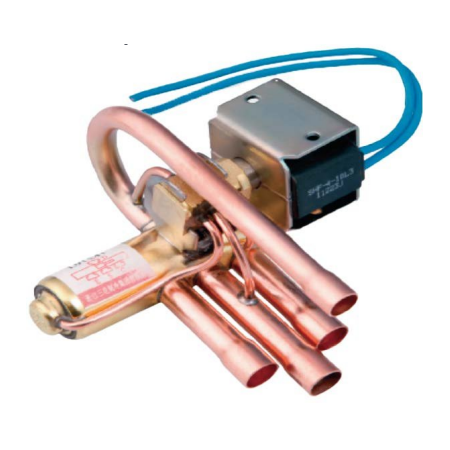

Reversing Valve | Compatible with R-410A | Safe Working Pressure 4200 kPa | Wide Operating Temperature Range | by Aspen Pumps
The Reversing Valve is designed for HVAC systems using R-410A refrigerant, offering a safe working pressure of up to 4,200 kPa and a wide operating temperature range from -30°C to 130°C. Certified by UL, VDE, and CQC, this valve ensures reliable performance in both commercial and residential refrigeration units, making it an ideal choice for efficient heat pump operation and energy savings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Valve | Compatible with R-410A | Safe Working Pressure 4200 kPa | Wide Operating Temperature Range | by Aspen Pumps
Brand: Aspen Pumps
SKU: 708-0610-U
Alternatively Known As: HVAC reversing valve, R-410A reversing valve, heat pump reversing valve, refrigeration reversing valve
Technical Specifications
- Capacity: 9.6 kW (2.5 Tons)
- Connections: 3/8 inch and 5/8 inch
- Safe working pressure: 4,200 kPa
- Operating temperature range: -30°C to 130°C
- Certifications: UL, VDE, CQC
- Dimensions (H x L x W): 120mm x 150mm x 100mm
- Weight: 1.2 kg
Key Features
- Compatible with R-410A refrigerant
- Safe working pressure up to 4,200 kPa
- Wide operating temperature range from -30°C to 130°C
- Certified by UL, VDE, and CQC for safety and quality
Professional Installation Requirements
- Installation must be performed by a licensed HVAC technician to ensure proper integration and compliance with safety standards.
Applications
- HVAC systems using R-410A refrigerant
- Air conditioning and heat pump systems
- Commercial and residential refrigeration units
Standards & Compliance
- Complies with AS/NZS 60335 for electrical safety in appliances
- Complies with AS/NZS 5149 for refrigeration systems safety
Environmental Benefits
- Supports efficient heat pump operation reducing energy consumption
- Compatible with environmentally safer refrigerants like R-410A
Warranty Information
1 year warranty covering manufacturing defects and performance issues.
Available Now
The Aspen Pumps Reversing Valve is available for immediate purchase, ideal for HVAC and refrigeration system upgrades or replacements.
