Trade Discount 17%

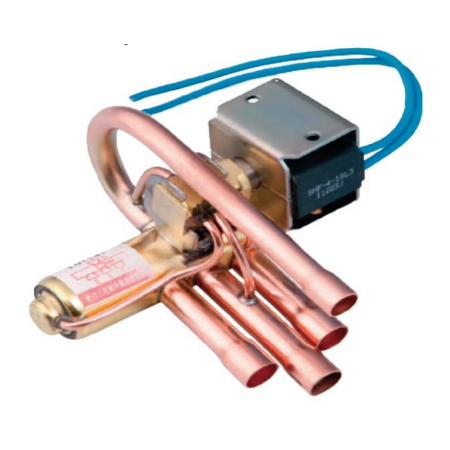

Reversing Valve | R-410A Compatible | Safe Working Pressure 4200 kPa | Wide Operating Temperature Range | by Aspen Pumps
The Reversing Valve is designed for HVAC systems using R-410A refrigerant, featuring a safe working pressure of 4,200 kPa and a wide operating temperature range from -30°C to 130°C. Ideal for heat pump applications, this valve ensures efficient operation and compliance with UL, VDE, and CQC standards, making it a reliable choice for licensed HVAC technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Valve | R-410A Compatible | Safe Working Pressure 4200 kPa | Wide Operating Temperature Range | by Aspen Pumps
Brand: Aspen Pumps
SKU: 708-0608-U
Alternatively Known As: HVAC Reversing Valve, Heat Pump Reversing Valve, R410A Reversing Valve
Technical Specifications
- Capacity: 8.5 kW (2 Tons)
- Connections: 3/8 inch and 1/2 inch
- Safe Working Pressure: 4,200 kPa
- Operating Temperature Range: -30°C to 130°C
- Certifications: UL, VDE, CQC
- Dimensions (H x L x W): 120mm x 150mm x 100mm
- Weight: 1.2 kg
Key Features
- Developed for use with R-410A refrigerant
- Safe working pressure of 4,200 kPa
- Wide operating temperature range from -30°C to 130°C
- Certified UL, VDE, and CQC for quality and safety
Professional Installation Requirements
- Installation by a licensed HVAC technician is required to ensure proper integration and safety compliance.
Applications
- Air conditioning systems using R-410A refrigerant
- Heat pump systems requiring reversing valve functionality
- HVAC systems compatible with A1 and A2L refrigerants
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Supports efficient heat pump operation reducing energy consumption
- Compatible with low global warming potential refrigerants (A1 and A2L)
- Durable design reduces replacement frequency and waste
Warranty Information
1 year warranty covering manufacturing defects and performance issues.
Available Now
The Aspen Pumps Reversing Valve is available for immediate purchase, ideal for HVAC and heat pump system applications.
