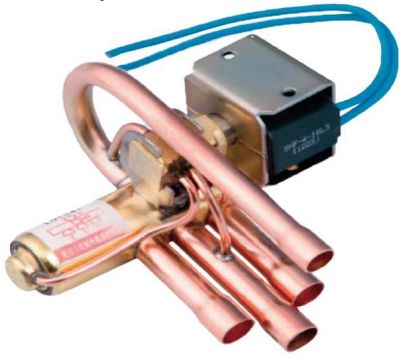

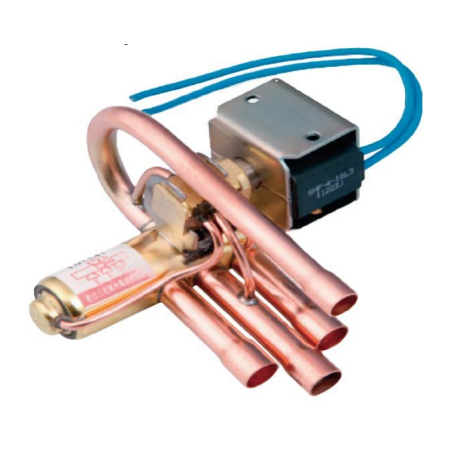

Reversing Valve | R-410A Compatible | Safe Working Pressure 4200 kPa | Wide Operating Temperature Range | by Aspen Pumps
The Reversing Valve is designed for HVAC systems using R-410A refrigerant, featuring a safe working pressure of 4,200 kPa and a wide operating temperature range from -30°C to 130°C. Certified by UL, VDE, and CQC, this valve ensures quality and safety for both commercial and residential applications, making it an essential component for efficient heat pump operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Reversing Valve | R-410A Compatible | Safe Working Pressure 4200 kPa | Wide Operating Temperature Range | by Aspen Pumps
Brand: Aspen Pumps
SKU: 708-0814-20
Alternatively Known As: HVAC Reversing Valve, R410A Reversing Valve, Heat Pump Reversing Valve
Technical Specifications
- Capacity: 21.2 kW (5.6 Tons)
- Connections: 1/2 inch and 7/8 inch
- Safe working pressure: 4,200 kPa
- Operating temperature range: -30°C to 130°C
- Certifications: UL, VDE, CQC
- Dimensions (H x L x W): 120mm x 150mm x 80mm
- Weight: 1.5 kg
Key Features
- Developed for use with R-410A refrigerant
- Safe working pressure of 4,200 kPa
- Wide operating temperature range from -30°C to 130°C
- Certified UL, VDE, and CQC for quality and safety
Professional Installation Requirements
- Installation by a qualified HVAC technician is recommended to ensure proper integration and safety compliance.
Applications
- HVAC systems using R-410A refrigerant
- Air conditioning and heat pump systems
- Commercial and residential refrigeration
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Supports efficient heat pump operation reducing energy consumption
- Compatible with environmentally safer refrigerant R-410A
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Reversing Valve is available for immediate purchase, ideal for HVAC systems using R-410A refrigerant.
