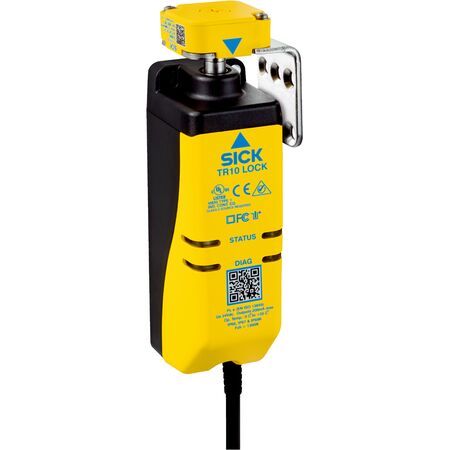

RFID Safety Lock TR10-SLM03P | Power to Lock | IP66/IP67/IP69K | by SICK
The RFID Safety Lock TR10-SLM03P is designed for industrial safety applications, featuring a robust power-to-lock mechanism and high locking force of up to 1,690 N. With two safe outputs and universal coding, it ensures reliable access control in hazardous areas. Built to last with an IP66/IP67/IP69K rating, this lock is perfect for machinery safety interlocks and offers a durable design that minimizes waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force Fmax: 1,690 N (EN ISO 14119)
- Locking force FZh: 1,300 N (EN ISO 14119)
- Number of safe outputs: 2
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.1 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state on fault: At least one safety-related semiconductor output (OSSD) OFF
- Connection type: Cable, 3 m length, PVC material
- Rated operating current: 200 mA at 24 V DC
- Rated insulation voltage Ui: 75 V
- Rated impulse withstand voltage Uimp: 1,000 V
- Power consumption: 2.5 W
- Response time: 100 ms first switch, 50 ms subsequent
- Release time: 600 ms
- Locking principle: Power to lock
- Housing material: ABS
- Locking bolt material: Stainless steel 304
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 60mm x 120mm x 60mm
- Weight: 0.4 kg
Key Features
- RFID sensor principle for secure locking
- Power to lock locking principle
- Two safe outputs with universal coding
- High locking force up to 1,690 N compliant with EN ISO 14119
- Four actuation directions supported
- LED display elements with diagnostics and status indicators
- Self-monitoring semiconductor outputs (OSSDs)
- Protection class II and contamination rating 3
- Robust housing with IP66, IP67, IP69K protection ratings
- Mechanical life of 500,000 switching cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical safety standards.
Applications
- Industrial safety applications requiring RFID locking mechanisms
- Machinery safety interlocks
- Access control in hazardous areas
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 2.5 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR10-SLM03P RFID Safety Lock is available for immediate purchase, ideal for industrial safety and machinery access control applications.
