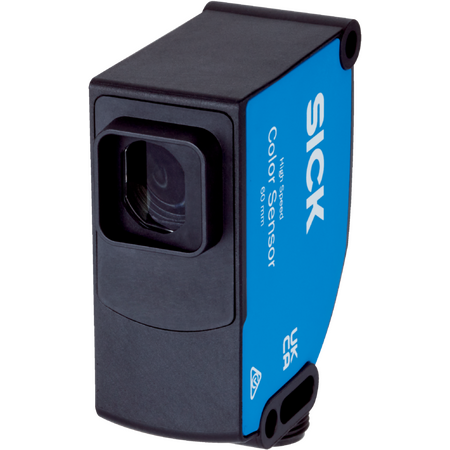

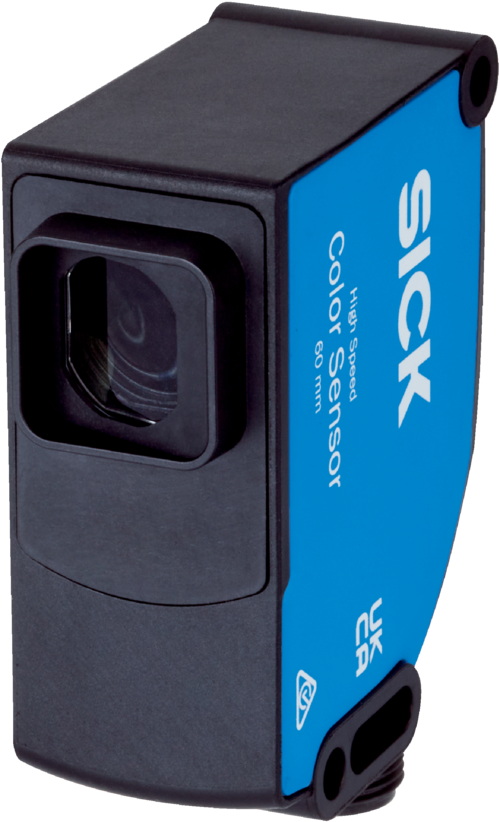

RGB Color Sensor IP67 Rated 60mm Sensing Distance Variant-1 SICK

BRAND: SICK
SKU: 1120170
$1,472.70 List price: $1,851.00
+ −
30 Days Return Electricians Unlock Trade Access
The RGB Color Sensor is designed for industrial automation, offering a 60mm sensing distance with ±9mm tolerance and an IP67 rated enclosure for dust and water
Technical Specifications
  • Supply voltage: 10.8 V DC to 28.8 V DC
  • Current consumption: less than 120 mA
  • Switching frequency: 13.8 kHz
  • Response time: 36 µs
  • Jitter: 18 µs
  • Switching output: Push-pull PNP/NPN
  • Output current max: 100 mA
  • Protection class: III
  • Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
  • Housing material: VISTAL®
  • Optics material: Glass
  • Connection type: Plug, M12, 5-pin
  • Enclosure rating: IP67
  • Operating temperature: -20 °C to +60 °C
  • Storage temperature: -25 °C to +75 °C
  • Shock load: 30 g / 11 ms according to IEC 60068-2-27
  • Dimensions (H x L x W): 62mm x 48mm x 26mm
  • Weight: 0.1 kg
Key Features
  • Sensing distance of 60 mm with ±9 mm tolerance
  • RGB LED light source with wavelengths of 460 nm, 530 nm, and 625 nm
  • Long side light emission with a round, large light spot of 12 mm diameter
  • Continuous sensitivity adjustment from 0 to 999
  • Two hardware switching outputs and 24 virtual switching outputs via IO-Link
  • Push-pull PNP/NPN switching output with max output current of 100 mA
  • IP67 rated enclosure for dust and water protection
  • Operating temperature range from -20 °C to +60 °C
  • Plug M12, 5-pin connection type
  • Safety-related parameters with MTTFD of 263.7 years
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
  • Industrial automation for object detection and color sensing
  • Quality control in manufacturing processes
  • Robotics and material handling systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient LED light source reduces power consumption
  • Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK CSS-WBFA54115AA10Z RGB LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
